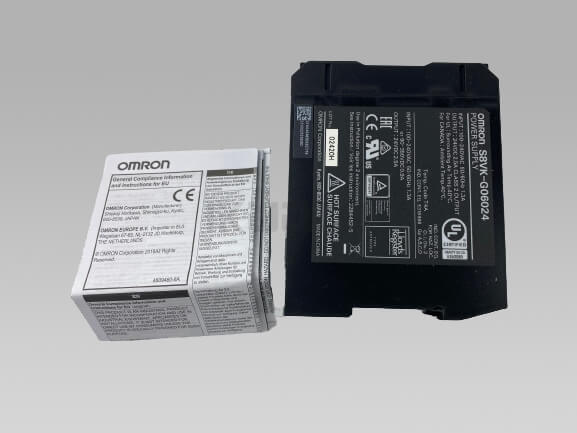

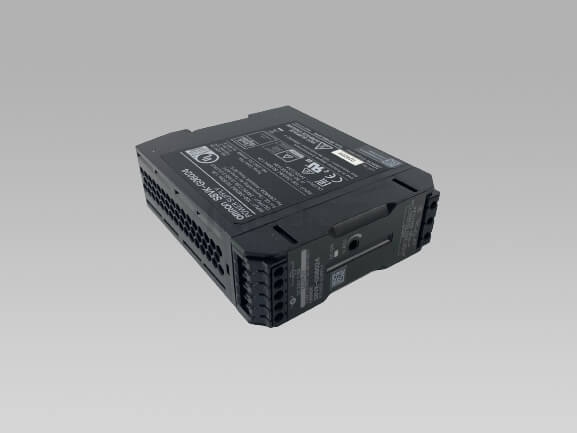

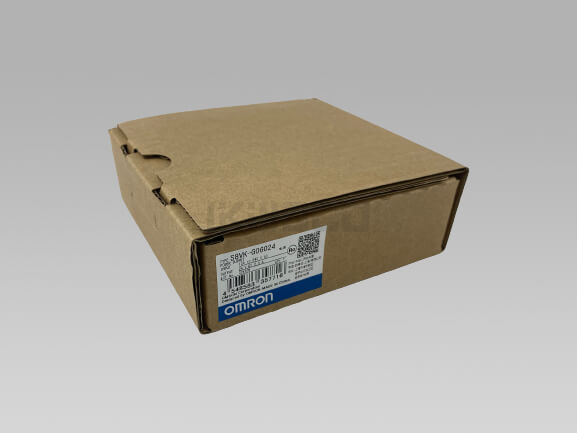

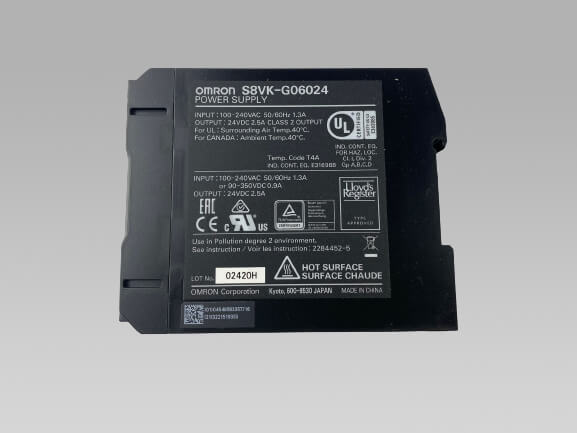

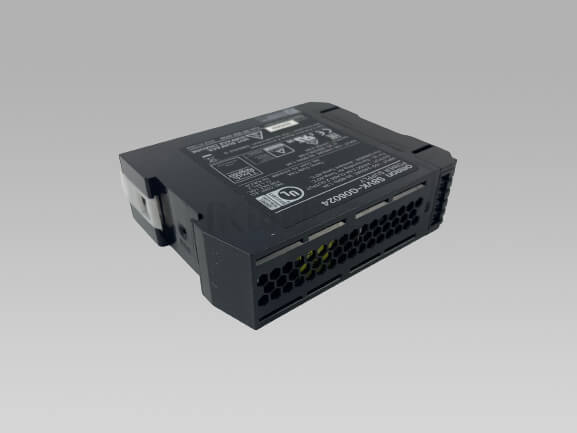

Brand: OMRON
Model Number: S8VK-G06024
Status: new original in stock
Warranty: one year
MOQ: no
Guaranteed new, original Omron products ensuring optimal performance.
Swift, efficient delivery to keep your projects on track.
Worldwide support and services, tailored to your needs.
Reliable and Easy Operation-Worldwide Power Supply. Resistant in tough environments. Easy and fast installation. The most compact class on the market.
| Power ratings | Input voltage | Output Voltage (VDC) |
Output current | Boost Current | Model number |
|---|---|---|---|---|---|
| 15 W | Single phase 100 to 240 VAC 90 to 350 VDC |
5 V | 3 A | 3.6 A | S8VK-G01505 |
| 12 V | 1.2 A | 1.44 A | S8VK-G01512 | ||
| 24 V | 0.65 A | 0.78 A | S8VK-G01524 | ||
| 30 W | 5 V | 5 A | 6 A | S8VK-G03005 | |
| 12 V | 2.5 A | 3 A | S8VK-G03012 | ||
| 24 V | 1.3 A | 1.56 A | S8VK-G03024 | ||
| 60 W | 12 V | 4.5 A | 5.4 A | S8VK-G06012 | |
| 24 V | 2.5 A | 3 A | S8VK-G06024 | ||
| 120 W | 24 V | 5 A | 6 A | S8VK-G12024 | |
| 240 W | 24 V | 10 A | 12 A | S8VK-G24024 | |
| 48 V | 5 A | 6 A | S8VK-G24048 | ||
| 480 W | 24 V | 20 A | 24 A | S8VK-G48024 | |
| 48 V | 10 A | 12 A | S8VK-G48048 |
| Power rating | 60 W | 120 W | |||
|---|---|---|---|---|---|
| Output voltage (VDC) | 12 V | 24 V | 24 V | ||
| Efficiency | 230 VAC input *6 |
85% typ. | 88% typ. | 89% typ. | |
| Input | Voltage range *1 | Single-phase, 85 to 264 VAC, 90 to 350 VDC *10 | |||
| Frequency *1 | 50/60 Hz (47 to 450 Hz) | ||||
| Current | 115 VAC input *6 |
1.0 A typ. | 1.1 A typ. | 1.3 A typ. | |
| 230 VAC input *6 |
0.6 A typ. | 0.7 A typ. | 0.7 A typ. | ||
| Power factor *6 |
230 VAC input, 100% load |
0.46 min. | 0.45 min. | 0.94 min. | |
| Leakage current |
115 VAC input | 0.16 mA typ. | 0.24 mA typ. | ||
| 230 VAC input | 0.30 mA typ. | 0.38 mA typ. | |||
| Inrush current *2 (for a cold start at 25°C) |
115 VAC input | 16 A typ. | 16 A typ. | ||
| 230 VAC input | 32 A typ. | 32 A typ. | |||
| Output | Rated output current | 4.5 A | 2.5 A | 5 A | |
| Boost current | 5.4 A | 0.125 | 6 A | ||
| Voltage adjustment range *3 | -10% to 15% (with V.ADJ) (guaranteed) | ||||
| Ripple & Noise voltage *4 |
100 to 240 VAC input, 100% load *6 |
150 mVp-p max. at 20 MHz of bandwidth |
50 mVp-p max. at 20 MHz of bandwidth |
150 mVp-p max. at 20 MHz of bandwidth |
|
| Input variation influence *8 | 0.4% max. | 0.4% max. | |||
| Load variation influence *7 | 0.8% max. | 0.8% max. | |||
| Temperature variation influence |
115 to 230 VAC input |
0.05%/°C max. | 0.05%/°C max. | ||
| Start up time *2 |
115 VAC input *6 |
570 ms typ. | 650 ms typ. | 790 ms typ. | |
| 230 VAC input *6 |
430 ms typ. | 500 ms typ. | 750 ms typ. | ||
| Hold time *2 |
115 VAC input *6 |
26 ms typ. | 25 ms typ. | 42 ms typ. | |
| 230 VAC input *6 |
139 ms typ. | 129 ms typ. | 42 ms typ. | ||
| Additional functions |
Overload protection | Yes, automatic reset | Yes, automatic reset | ||
| Overvoltage protection *5 | Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again) |
||||
| Series operation | Yes (For up to two Power Supplies, external diodes are required.) | ||||
| Parallel operation | Yes (Refer to Safety Precautions) (For up to two Power Supplies) | ||||
| Output indicator | Yes (LED: Green), lighting from 80% to 90% or more of rated voltage | ||||
| Insulation | Withstand voltage | 3.0 kVAC for 1 min. (between all input terminals and output terminals), current cutoff 20 mA |
|||
| 2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 20 mA |
|||||
| 1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 20 mA |
|||||
| Insulation resistance | 100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC |
||||
| Environ- ment |
Ambient operating temperature *12 |
-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing) |
|||
| Storage temperature | -40 to 85°C (with no condensation or icing) | ||||
| Ambient operating humidity | 0% to 95% (Storage humidity: 0% to 95%) | ||||
| Vibration resistance | 10 to 55 Hz, 0.375 mm half amplitude for 2 h each in X, Y, and Z directions |
||||
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | ||||
| Reliability | MTBF | 135,000 hrs min. | |||
| Life expectancy *9 | 10 years min. | ||||
| Con- struction |
Weight | 260 g max. | 620 g max. | ||
| Cooling fan | No | ||||
| Degree of protection | IP20 by EN/IEC 60529 | ||||
| Standards | Harmonic current emissions | Conforms to EN 61000-3-2 | |||
| EMI | Conducted Emissions |
Conforms to EN 61204-3 Class B, EN 55011 Class B | |||
| Radiated Emissions |
Conforms to EN 61204-3 Class B, EN 55011 Class B | ||||
| EMS | Conforms to EN 61204-3 high severity levels | ||||
| Approved Standards | UL Listed: UL 508 (Listing, For 60 W only Class2 Output: Per UL 1310 ) UL UR: UL 62368-1 (Recognition) cUL: CSA C22.2 No.107.1 (For 60 W only Class2 Output: Per CSA C22.2 No.223) cUR: CSA C22.2 No.62368-1 EN: EN 62477-1, EN 62368-1 |
||||
| Conformed Standards | PELV (EN 60204-1, EN 62477-1) | ||||
| EN 61558-2-16 | |||||
| EAC (TR CU 004 / 2011, TR CU 020 / 2011) | |||||
| RCM (EN61000-6-4) | |||||
| Marine Standards | Lloyd’s register *10 *11 | ||||
| SEMI | Conforms to F47-0706 (200 to 240 VAC input) | ||||
