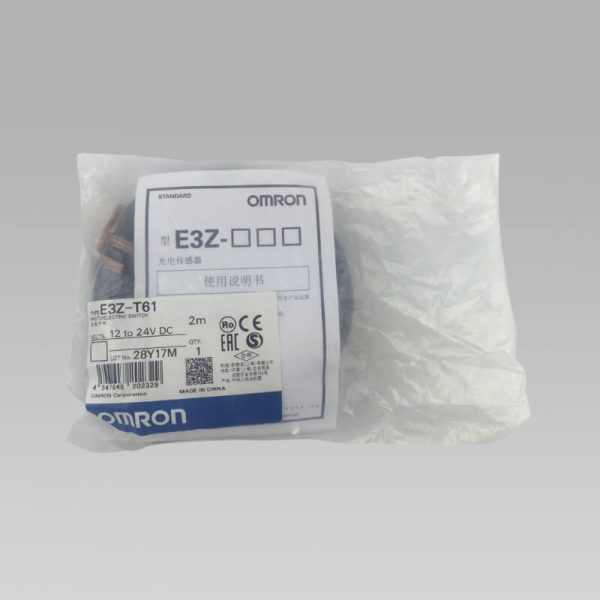

Omron Photoelectric Sensor E3Z-T61

Brand: OMRON

Model Number: E3Z-T61

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

The E3Z-T61 is a robust, compact photoelectric sensor designed for industrial applications. It features a built-in amplifier, operates efficiently with a quick response time, and offers protection against environmental factors, ensuring reliable performance in diverse settings.



Detailed Specifications

Specification Item E3Z-T61 Details
Sensing Method Diffuse-reflective
Sensing Distance 100 mm
Light Source (Wavelength) Infrared LED
Current Consumption 35 mA max. (Emitter: 15 mA, Receiver: 20 mA)
Protection Circuits Reversed power supply polarity, Output short-circuit, Reversed output polarity protection
Response Time Operate or reset: 1 ms max.
Degree of Protection IEC, IP67
Connection Method Pre-wired cable (standard length: 2 m and 0.5 m), Connector (M8)
Weight (Packed State) Pre-wired cable (2 m): Approx. 120 g, Connector: Approx. 30 g
Material Case: PBT (polybutylene terephthalate), Lens: Modified polyarylate/Methacrylic resin
Power Supply Voltage 12 to 24 VDC±10%, ripple (p-p): 10% max.
Control Output Load power supply voltage: 26.4 VDC max., Load current: 100 mA max., Residual voltage: 1 V max. (less than 10 mA), 2 V max. (10 to 100 mA)
Light-ON/Dark-ON Selectable Yes
Sensitivity Adjustment One-turn adjuster
Ambient Illumination (Receiver Side) Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.
Ambient Temperature Range Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient Humidity Range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)

Get Started with Ikwoco

Secure your business success with our quality Omron products. Contact us today and experience the difference a decade of industry expertise makes.

215 150
285 150
215 150 (2)
215 180
Worried about the price?

Uncompromised Quality, Competitive Prices

Leveraging efficient supply chain processes and bulk purchasing power, Ikwoco delivers exceptional Omron products at prices that maximize your investment.

295 230

Omron Cables are renowned for their compact design, robust performance, high-speed data transmission, durable construction, easy integration, and adherence to international safety standards, making them a trusted choice for various industrial automation needs.

Our expert team is available to provide personalized guidance based on your specific connectivity needs to ensure you select the most suitable Omron Cable model.

Yes, Omron Cables are engineered for easy integration with a vast array of industrial devices and systems, enhancing the versatility of your automation setup.

Absolutely. We offer comprehensive technical support to ensure smooth setup and optimal performance of your Omron Cables.

You can place an order through our website or contact our sales team for guided assistance through the ordering process.
