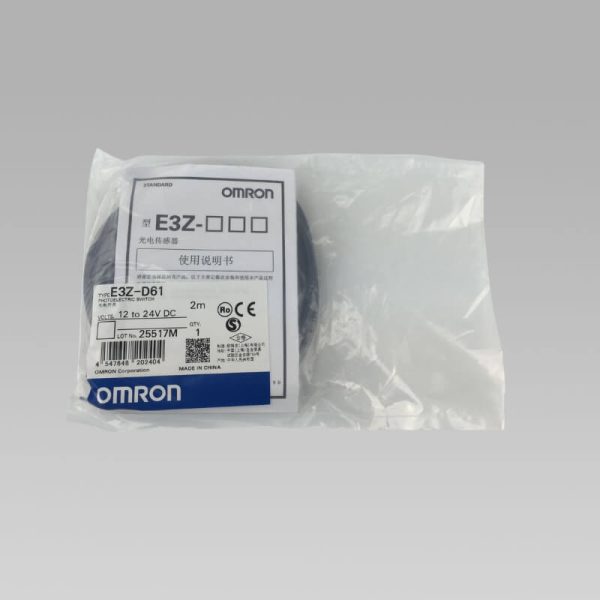

Omron Photoelectric Sensor E3Z-D61

Brand: OMRON

Model Number: E3Z-D61

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

The E3Z-D61 is a diffuse-reflective photoelectric sensor with a compact design and built-in amplifier, suitable for industrial applications. It offers reliable detection with a short response time, and its robust construction ensures high durability in challenging environments.



Detailed Specifications

Specification Item E3Z-D61 Details
Sensing Method Diffuse-reflective
Sensing Distance 100 mm
Light Source (Wavelength) Infrared LED
Current Consumption 35 mA max. (Emitter: 15 mA, Receiver: 20 mA)
Protection Circuits Reversed power supply polarity, Output short-circuit, Reversed output polarity protection
Response Time Operate or reset: 1 ms
Degree of Protection IEC, IP67
Connection Method Pre-wired cable (standard length: 2 m and 0.5 m), Connector (M8)
Weight (Packed State) Pre-wired cable (2 m): Approx. 120 g, Connector: Approx. 30 g
Material Case: PBT (polybutylene terephthalate), Lens: Modified polyarylate/Methacrylic resin
Power Supply Voltage 12 to 24 VDC±10%, ripple (p-p): 10% max.
Control Output Load power supply voltage: 26.4 VDC max., Load current: 100 mA max., Residual voltage: 1 V max. (less than 10 mA), 2 V max. (10 to 100 mA)
Light-ON/Dark-ON Selectable Yes
Sensitivity Adjustment One-turn adjuster
Ambient Illumination (Receiver Side) Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.
Ambient Temperature Range Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient Humidity Range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
