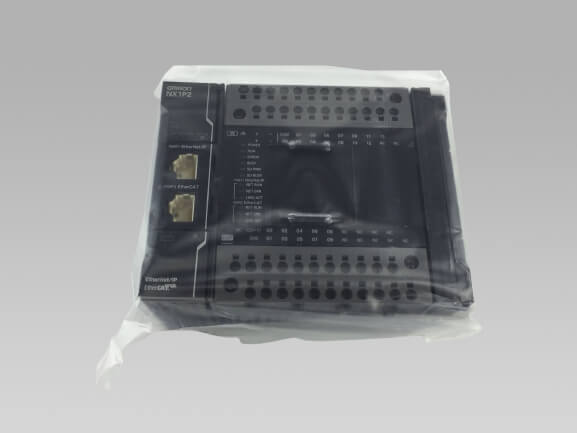

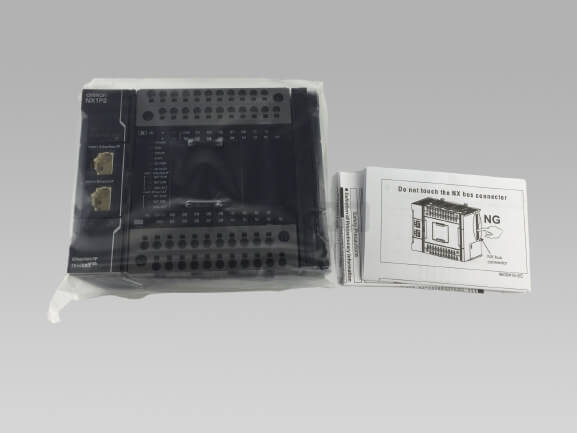

Brand: OMRON
Model Number: NX1P2-9024DT1
Status: new original in stock
Warranty: one year
MOQ: no
Guaranteed new, original Omron products ensuring optimal performance.
Swift, efficient delivery to keep your projects on track.
Worldwide support and services, tailored to your needs.
| Product Name |
Pro- gram ca- paci- ty |
Memory capacity for variables |
Maximum number of used real axes |
Total number of built-in I/O points |
Model | ||||
|---|---|---|---|---|---|---|---|---|---|
| Used motion control servo axes *1 |
Used single- axis position control servo axes *1 |
Number of input points |
Number of output points |
||||||
| NX1P2 CPU Unit  |
1.5 MB |
32 KB (Retained during power inter- ruptions) or 2 MB (Not retained during power inter- ruptions) |
8 axes |
4 axes | 4 axes | 40 points |
24 points |
16 points, NPN transistor |
NX1P2-1140DT |
| 16 points, PNP transistor *2 |
NX1P2-1140DT1 | ||||||||
| 6 axes |
2 axes | 4 axes | 16 points, NPN transistor |
NX1P2-1040DT | |||||
| 16 points, PNP transistor *2 |
NX1P2-1040DT1 | ||||||||
 |
4 axes |
0 axes | 4 axes | 24 points |
14 points |
10 points, NPN transistor |
NX1P2-9024DT | ||
| 10 points, PNP transistor *2 |
NX1P2-9024DT1 | ||||||||
| Item | Specification | ||
|---|---|---|---|
| Model | NX1P2-1[]40DT[] | NX1P2-9024DT[] | |
| Enclosure | Mounted in a panel | ||
| Dimensions (mm) *1 | 154 × 100 × 71 mm (W×H×D) | 130 × 100 × 71 mm (W×H×D) | |
| Weight *2 | NX1P2-1[]40DT: 650 g NX1P2-1[]40DT1: 660 g |
NX1P2-9024DT: 590 g NX1P2-9024DT1: 590 g |
|
| Unit power supply |
Power supply voltage | 24 VDC (20.4 to 28.8 VDC) | |
| Unit power consumption *3 | NX1P2-1[]40DT: 7.05 W NX1P2-1[]40DT1: 6.85 W |
NX1P2-9024DT: 6.70 W NX1P2-9024DT1: 6.40 W |
|
| Inrush current *4 | For cold start at room temperature: 10 A max./0.1 ms max. and 2.5 A max./150 ms max. |
||
| Current capacity of power supply terminal *5 |
4 A max. | ||
| Isolation method | No isolation: between the Unit power supply terminal and internal circuit |
||
| Power supply to the NX Unit power supply |
NX Unit power supply capacity |
10 W max. | |
| NX Unit power supply efficiency |
0.8 | ||
| Isolation method | No isolation: between the Unit power supply terminal and NX Unit power supply |
||
| I/O Power Supply to NX Units | Not provided *6 | ||
| External connection terminals |
Communication connector | RJ45 for EtherNet/IP Communications × 1 RJ45 for EtherCAT Communications × 1 |
|
| Screwless clamping terminal block |
For Unit power supply input, grounding, and input signal: 1 (Removable) For output signal: 1 (Removable) |
||
| Output terminal (service supply) |
Not provided | ||
| RUN output terminal | Not provided | ||
| NX bus connector | 8 NX Units can be connected | ||
| Option board slot | 2 | 1 | |
| Item | Specification | |
|---|---|---|
| Enclosure | Mounted in a panel | |
| Grounding method | Ground to less than 100 Ω. | |
| Operating environment |
Ambient operating temperature |
0 to 55°C |
| Ambient operating humidity |
10% to 95% (with no condensation) | |
| Atmosphere | Must be free from corrosive gases. | |
| Ambient storage temperature |
-25 to 70°C (excluding battery) | |
| Altitude | 2,000 m max. | |
| Pollution degree | 2 or less: Meets IEC 61010-2-201. | |
| Noise immunity | 2 kV on power supply line (Conforms to IEC 61000-4-4.) | |
| Overvoltage category |
Category II: Meets IEC 61010-2-201. | |
| EMC immunity level |
Zone B | |
| Vibration resistance |
Conforms to IEC 60068-2-6. 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s2 100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) |
|
| Shock resistance | Conforms to IEC 60068-2-27. 147 m/s2, 3 times in X, Y, and Z directions |
|
| Battery | Life | 5 years (Power ON time rate 0% (power OFF)) |
| Model | CJ1W-BAT01 (sold separately) | |
| Applicable standards * |
EU Directives | EN 61131-2 |
| cULus | Listed UL 61010-2-201 and ANSI/ISA 12.12.01 | |
| Shipbuilding Standards |
NK, LR | |
| Other than the above. |
RCM, KC, EAC | |
