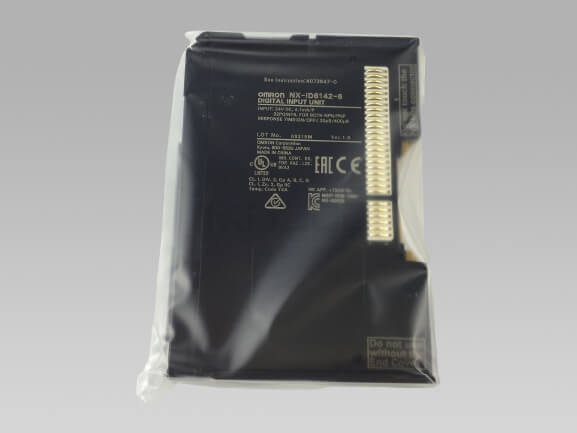

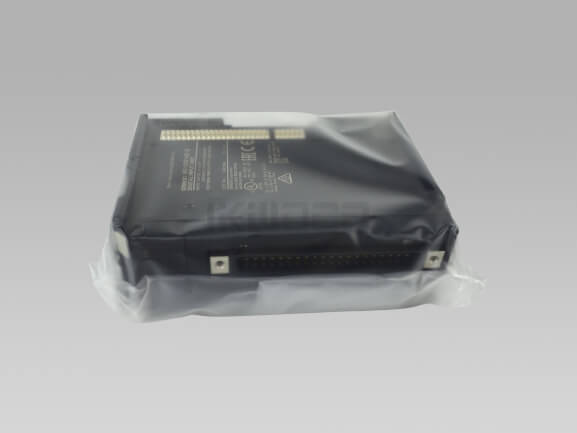

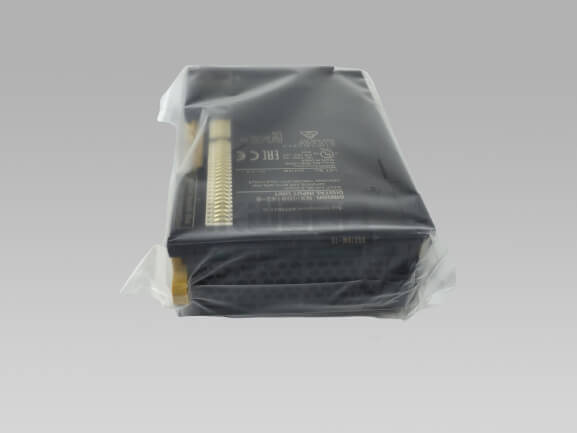

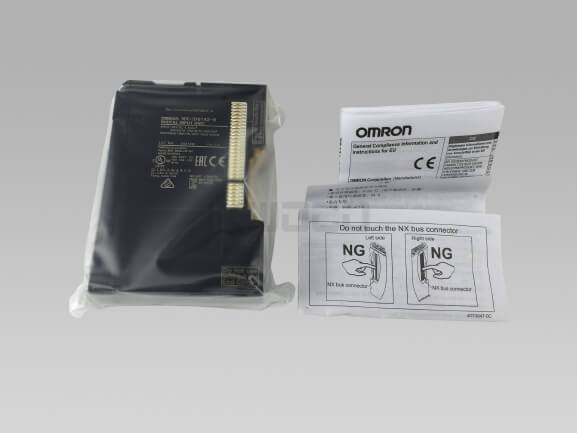

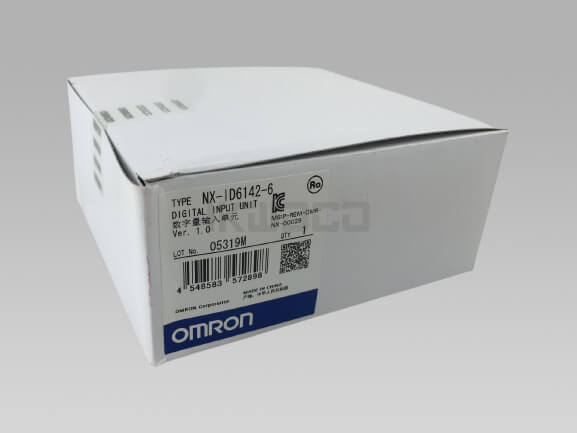

OMRON NX-ID6142-6 Input Unit

Brand: OMRON

Model Number: NX-ID6142-6

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

Features

  1. High-speed I/O refreshing using the EtherCAT coupler.
  2. Time-stamp inputs and outputs anywhere in the EtherCAT network can be independently controlled with sub-microsecond accuracy.
  3. 4, 8, 16 or 32 inputs for flexible I/O configuration (NX-ID/IA).



NX Input Units Specifications

Product Name Specification Model
Number
of
points
Internal
I/O
common
Rated
input
voltage
I/O refreshing
method
ON/OFF
response
time
DC Input Unit
3650_lu_3_1
(Screwless
Clamping
Terminal Block,
12 mm Width)
4 points NPN 12 to
24 VDC
Switching
Synchronous I/O
refreshing and Free-
Run refreshing
20 μs max./
400 μs max.
NX-ID3317
24 VDC 100 ns max./
100 ns max.
NX-ID3343
Input refreshing with
input changed time
only *
NX-ID3344
PNP 12 to
24 VDC
Switching
Synchronous I/O
refreshing and Free-
Run refreshing
20 μs max./
400 μs max.
NX-ID3417
24 VDC 100 ns max./
100 ns max.
NX-ID3443
Input refreshing with
input changed time
only *
NX-ID3444
8 points NPN Switching
Synchronous I/O
refreshing and Free-
Run refreshing
20 μs max./
400 μs max.
NX-ID4342
PNP NX-ID4442
16 points NPN NX-ID5342
PNP NX-ID5442
DC Input Unit
3650_lu_3_2
(M3 Screw
Terminal Block,
30 mm Width)
16 points For both
NPN/PNP
24 VDC Switching
Synchronous I/O
refreshing and Free-
Run refreshing
20 μs max./
400 μs max.
NX-ID5142-1
DC Input Unit
3650_lu_3_3
(MIL Connector,
30 mm Width)
16 points For both
NPN/PNP
24 VDC Switching
Synchronous I/O
refreshing and Free-
Run refreshing
20 μs max./
400 μs max.
NX-ID5142-5
32 points NX-ID6142-5
DC Input Unit
3650_lu_3_4
(Fujitsu
Connector,
30 mm Width)
32 points For both
NPN/PNP
24 VDC Switching
Synchronous I/O
refreshing and Free-
Run refreshing
20 μs max./
400 μs max.
NX-ID6142-6
AC Input Unit
3650_lu_3_5
(Screwless
Clamping
Terminal Block,
12 mm Width)
4 points 200 to 240 VAC,
50/60 Hz
(170 to 264 VAC,
±3 Hz)
Free-Run refreshing 10 ms max./
40 ms max.
NX-IA3117
