Brand: OMRON

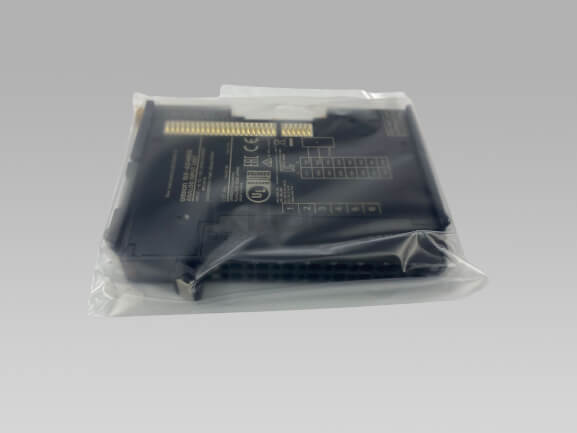

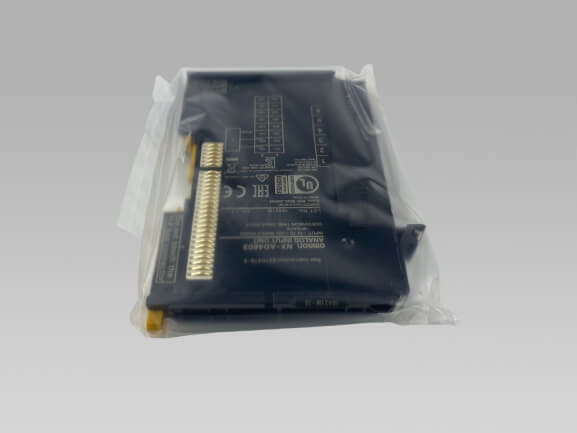

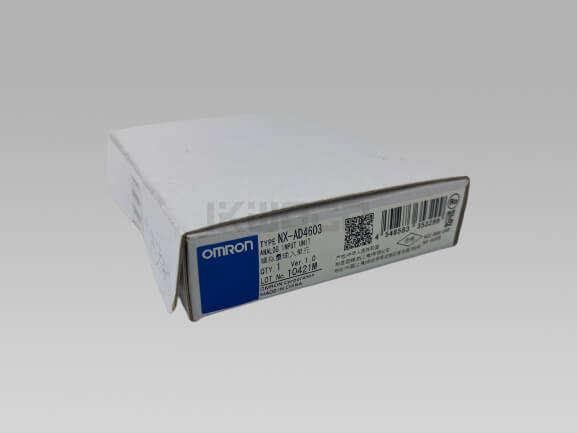

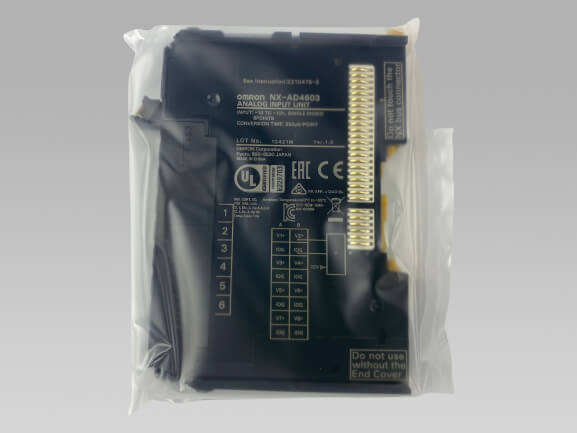

Model Number: NX-AD4603
Status: new original in stock
Warranty: one year
MOQ: no
Guaranteed new, original Omron products ensuring optimal performance.
Swift, efficient delivery to keep your projects on track.
Worldwide support and services, tailored to your needs.
| Product name |
Specification | Model | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Num- ber of points |
Input range |
Reso- lution |
Conver- sion value, decimal number (0 to 100%) |
Over all accuracy (25°C) |
Input method |
Con- ver- sion time |
Input impe- dance |
I/O refre- shing method |
||
| Voltage Input type  |
2 points |
-10 to +10 V |
1/8000 | -4000 to 4000 |
±0.2% (full scale) |
Single- ended input |
250 μs/ point |
1 MΩ min. |
Free-Run refreshing |
NX-AD2603 |
| Differential Input |
NX-AD2604 | |||||||||
| 1/30000 | -15000 to 15000 |
±0.1% (full scale) |
Differential Input |
10 μs/ point |
Selectable Synchronous I/O refreshing or Free-Run refreshing |
NX-AD2608 | ||||
| 4 points |
1/8000 | -4000 to 4000 |
±0.2% (full scale) |
Single- ended input |
250 μs/ point |
Free-Run refreshing |
NX-AD3603 | |||
| Differential Input |
NX-AD3604 | |||||||||
| 1/30000 | -15000 to 15000 |
±0.1% (full scale) |
Differential Input |
10 μs/ point |
Selectable Synchronous I/O refreshing or Free-Run refreshing |
NX-AD3608 | ||||
| 8 points |
1/8000 | -4000 to 4000 |
±0.2% (full scale) |
Single- ended input |
250 μs/ point |
Free-Run refreshing |
NX-AD4603 | |||
| Differential Input |
NX-AD4604 | |||||||||
| 1/30000 | -15000 to 15000 |
±0.1% (full scale) |
Differential Input |
10 μs/ point |
Selectable Synchronous I/O refreshing or Free-Run refreshing |
NX-AD4608 | ||||
| Current Input type  |
2 points |
4 to 20 mA |
1/8000 | 0 to 8000 | ±0.2% (full scale) |
Single- ended input |
250 μs/ point |
250 Ω | Free-Run refreshing |
NX-AD2203 |
| Differential Input |
NX-AD2204 | |||||||||
| 1/30000 | 0 to 30000 |
±0.1% (full scale) |
Differential Input |
10 μs/ point |
Selectable Synchronous I/O refreshing or Free-Run refreshing |
NX-AD2208 | ||||
| 4 points |
1/8000 | 0 to 8000 | ±0.2% (full scale) |
Single- ended input |
250 μs/ point |
Free-Run refreshing |
NX-AD3203 | |||
| Differential Input |
NX-AD3204 | |||||||||
| 1/30000 | 0 to 30000 |
±0.1% (full scale) |
Differential Input |
10 μs/ point |
Selectable Synchronous I/O refreshing or Free-Run refreshing |
NX-AD3208 | ||||
| 8 points |
1/8000 | 0 to 8000 | ±0.2% (full scale) |
Single- ended input |
250 μs/ point |
85 Ω | Free-Run refreshing |
NX-AD4203 | ||
| Differential Input |
NX-AD4204 | |||||||||
| 1/30000 | 0 to 30000 |
±0.1% (full scale) |
Differential Input |
10 μs/ point |
Selectable Synchronous I/O refreshing or Free-Run refreshing |
NX-AD4208
|
||||
| Unit name | Analog Input Unit (voltage input type) |
Model | NX-AD4603 | |
|---|---|---|---|---|
| Number of points | 8 points | External connection terminals |
Screwless clamping terminal block (16 terminals) |
|
| I/O refreshing method | Free-Run refreshing | |||
| Indicator | TS indicator |
Input method | Single-ended input | |
| Input range | -10 to +10 V | |||
| Input conversion range |
-5 to 105% (full scale) | |||
| Absolute maximum rating |
±15 V | |||
| Input impedance | 1 MΩ min. | |||
| Resolution | 1/8000 (full scale) | |||
| Overall accuracy |
25℃ | ±0.2% (full scale) | ||
| 0 to 55℃ | ±0.4% (full scale) | |||
| Conversion time | 250 μs/point | |||
| Dimensions | 12 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus: Power = Transformer, Signal = Digital isolator (no isolation between inputs) |
|
| Insulation resistance | 20 MΩ min. between isolated circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max. |
|
| I/O power supply method |
Supply from the NX bus | Current capacity of I/O power supply terminal |
IOG: 0.1 A/terminal max. | |
| NX Unit power consumption |
• Connected to a CPU Unit or Communication Control Unit 1.45 W max. • Connected to a Communi- cations Coupler Unit 1.15 W max. |
I/O current consumption |
No consumption | |
| Weight | 70 g max. | |||
