Brand: OMRON

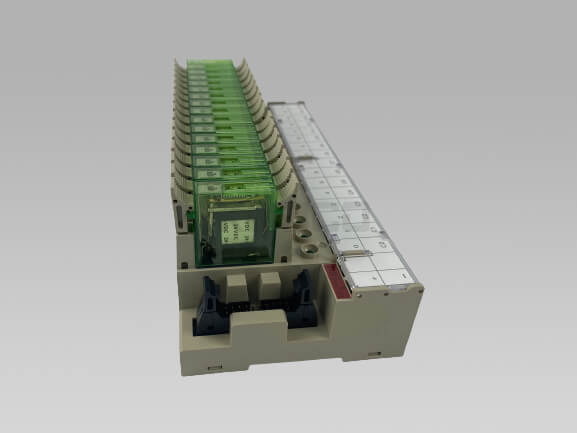

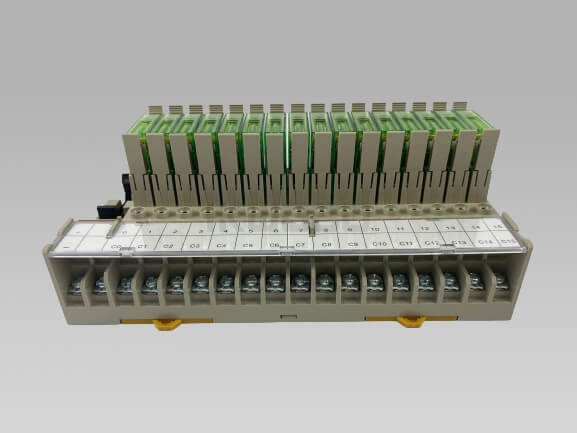

Model Number: G7TC-ID16
Status: new original in stock
Warranty: one year
MOQ: no
Guaranteed new, original Omron products ensuring optimal performance.
Swift, efficient delivery to keep your projects on track.
Worldwide support and services, tailored to your needs.
| I/O classification | I/O points | Internal I/O common | Rated voltage | Model |
|---|---|---|---|---|
| Input | 16 | NPN (- common) | 12 VDC | G7TC-ID16 |
| 24 VDC | ||||
| 100 (110) VDC | ||||
| 100/(110) VAC | G7TC-IA16 | |||
| 200/(220) VAC | ||||
| Output | 16 | NPN (+ common) | 12 VDC | G7TC-OC16 |
| 24 VDC | ||||
| PNP (- common) | 12 VDC | G7TC-OC16-1 * | ||
| 24 VDC | ||||
| 8 | NPN (+ common) | 12 VDC | G7TC-OC08 | |
| 24 VDC |
| Model | G7TC-IA16 (Input, AC coil) | G7TC-ID16 (Input, DC coil) | G7TC-OC16(-1) (output, DC coil) | G7TC-OC08 (output, DC coil) | |
|---|---|---|---|---|---|
| Contact form | SPST-NO × 16 | SPST-NO × 8 | |||
| Contact mechanism | Bifurcated crossbar contact | Single contact | |||
| Contact material | Au cladding + Ag | AgInSn | |||
| Contact resistance *1 | 50 mΩ max. | ||||
| Must Operate time *2 | 15 ms max. | ||||
| Release time *2 | 15 ms max. | ||||
| Max. switching frequency | Mechanical limit | 18,000 operations/h | |||
| At rated load | 1,800 operations/h | ||||
| Insulation resistance | 100 MΩ (at 500 VDC) | ||||
| Dielectric strength | Between coil and contact | 2,000 VAC, 50/60 Hz for 1 minute | |||
| Between same polarity contacts | 1,000 VAC, 50/60 Hz for 1 minute | ||||
| Between paired connectors *3 | 250 VAC, 50/60 Hz for 1 minute | ||||
| Vibration resistance | 10 to 55 to 10 Hz with 0.5-mm single amplitude (1.0-mm double amplitude) | ||||
| Shock resistance | 200 m/s2 | ||||
| Noise immunity | Noise level: 1.5 kV; pulse width: 100 ns to 1μs | ||||
| Rated voltage between positive and negative terminal blocks | Rated voltage of controller’s (PLC or other) input circuit | 12 VDC ±5% 24 VDC ±5% | |||
| Rated current between positive and negative terminal blocks | Input circuit current of controller (PLC or other) × number of ON points | 12 VDC: 46 mA × number of ON points 24 VDC: 25 mA × number of ON points | |||
| Cable length *4 | To controller | 5 m max. (reference value) | |||
| To I/O devices | 50 m max. (reference value, for 2-mm2 CVV cable) | Dependent on load | |||
| Ambient operating temperature | 0 to 55°C | ||||
| Ambient operating humidity | 35% to 85% (with no icing or condensation) | ||||
| Tightening torque for external connections | 0.78 to 1.18 Nm | ||||
| Tensile strength | No damage when a tensile force of 49 N is applied in each direction. In the direction of the track, the tensile strength is 9.8 N min. | ||||
| I/O terminal tightening torque | Tightening strength: 0.98 Nm; Tensile strength 49 N per minute | ||||
| LED color | Red | Green | |||
| Case color | Transparent red | Transparent green | Transparent green | ||
| Coil surge absorber | Varistor | Diode (1 A, 1,000 V) | |||
| Weight | Approx. 640 g | Approx. 630 g | Approx. 670 g | Approx. 350 g | |
Secure your business success with our quality Omron products. Contact us today and experience the difference a decade of industry expertise makes.
Leveraging efficient supply chain processes and bulk purchasing power, Ikwoco delivers exceptional Omron products at prices that maximize your investment.
Omron Cables are renowned for their compact design, robust performance, high-speed data transmission, durable construction, easy integration, and adherence to international safety standards, making them a trusted choice for various industrial automation needs.
Our expert team is available to provide personalized guidance based on your specific connectivity needs to ensure you select the most suitable Omron Cable model.
Yes, Omron Cables are engineered for easy integration with a vast array of industrial devices and systems, enhancing the versatility of your automation setup.
Absolutely. We offer comprehensive technical support to ensure smooth setup and optimal performance of your Omron Cables.
You can place an order through our website or contact our sales team for guided assistance through the ordering process.
