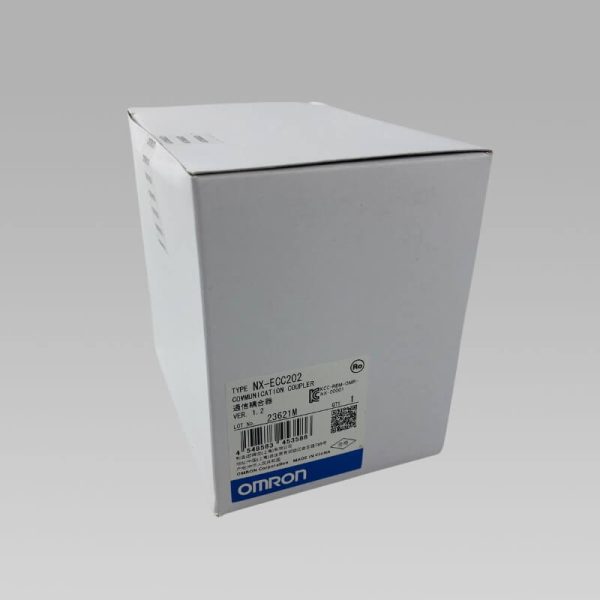

Omron EtherCAT Coupler Unit NX-ECC202

Brand: OMRON

Model Number: NX-ECC202

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

The NX-ECC202 is an EtherCAT Coupler Unit designed for high-speed remote I/O control in industrial automation, supporting up to 63 NX-IO Units with a communication cycle ranging from 125 to 10000 μs.


Detailed Specifications

Specification Category Details
Product Type EtherCAT Coupler Unit
Model NX-ECC202
Number of Connectable NX Units Maximum of 63 Units
Communications Cycle in DC Mode 125 to 10000 μs*
Send/Receive PDO Data Sizes Input: 1024 bytes max., Output: 1024 bytes max.
Mailbox Data Size Input: 256 bytes, Output: 256 bytes
Refreshing Methods Free-Run refreshing, Synchronous I/O refreshing, Time stamp refreshing
Node Address Setting Range Set on switches: 1 to 199, Set with Sysmac Studio: 1 to 512
I/O Jitter Performance Inputs: 1 μs max., Outputs: 1 μs max.
Power Supply Voltage 24 VDC (20.4 to 28.8 VDC)
Unit Power Supply 10 W max.
NX Unit Power Supply Efficiency 70%
Isolation Method No isolation between NX Unit power supply and Unit power supply terminals
Current Capacity of Power Supply Terminals 4 A max.
I/O Power Supply Voltage: 5 to 24 VDC (4.5 to 28.8 VDC), Current: 4 A max.
NX Unit Power Consumption 1.25 W max.
Dielectric Strength 510 VAC for 1 min leakage current: 5 mA max. (between isolated circuits)
External Connection Terminals Communications Connector (RJ45 × 2), Screwless Clamping Terminal Block, Peripheral USB Port
Dimensions 46 × 100 × 71 mm (W×H×D)
Weight 170 g max.
