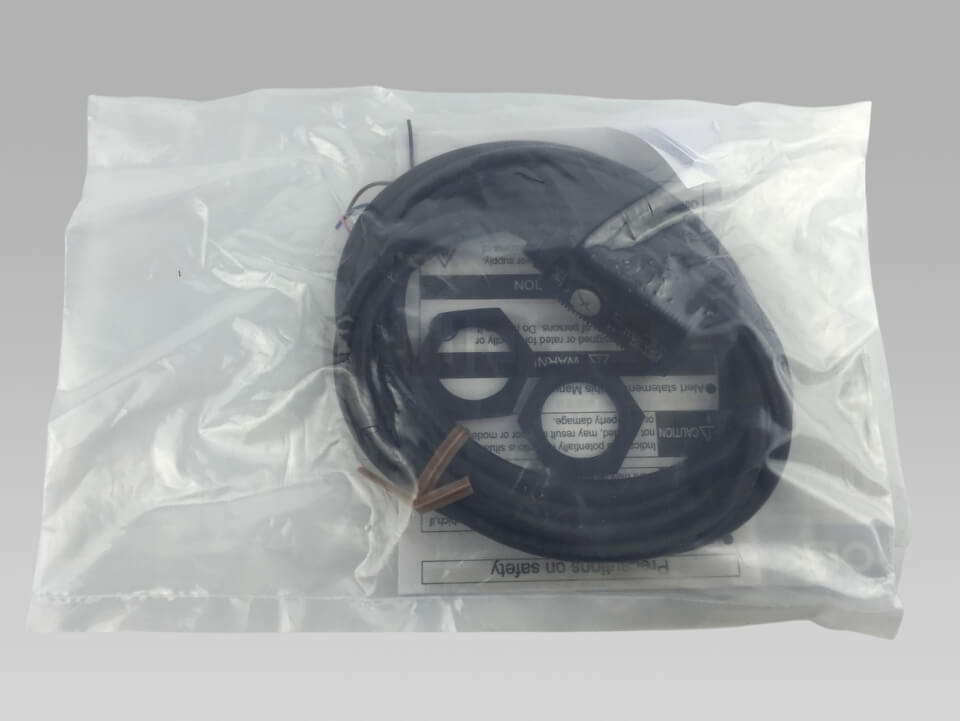

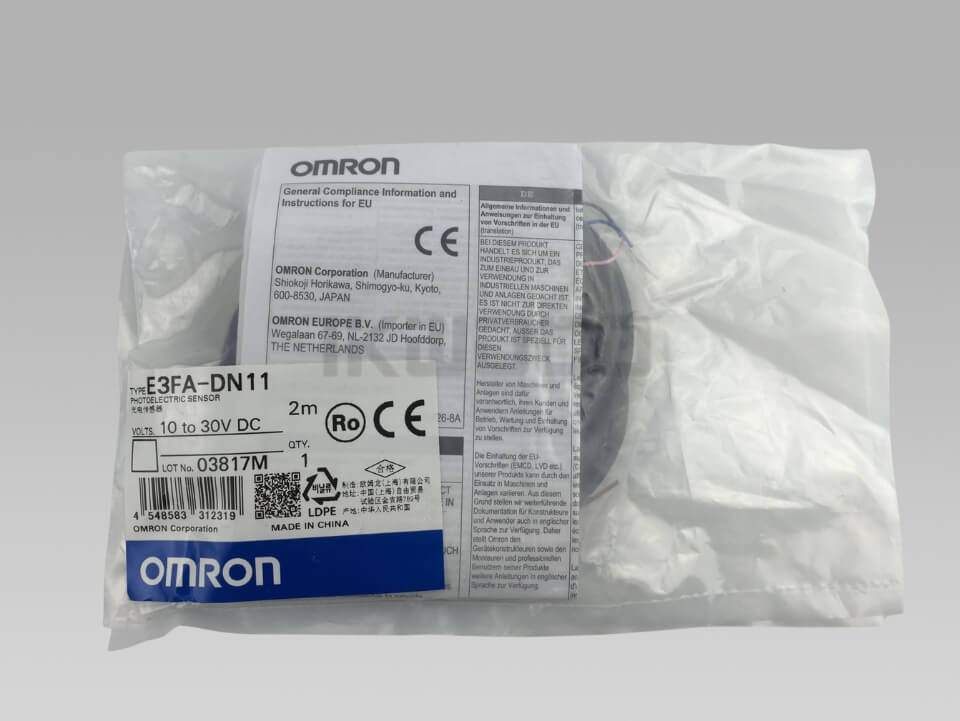

OMRON E3FA-DN11 Photoelectric Sensor

Brand: OMRON

Model Number: E3FA-DN11

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

Features

Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 100 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm)

E3FA-DN11 Photoelectric Sensors Specifications

Sensing method Diffuse-reflective
Sensing distance White paper 300 x 300 mm: 100 mm
Light source Red LED (624 nm)
Connection method Pre-wired models

Shape Cylinder type
Sensing method Diffuse-reflective
Sensing distance White paper 300 x 300 mm: 100 mm
Spot size 40 x 45 mm (sensing distance: 100 mm)
Differential distance 20% max.
Light source Red LED (624 nm)
Power supply voltage 10 to 30 VDC±10% ripple (p-p) 10% included
Current consumption 25 mA max.
Control output NPN open collector
30 VDC max.
100 mA max.
Residual voltage: 3 V max.
Operation mode Light-ON/Dark-ON selectable
Protective circuit Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection
Response time Operate or reset: 0.5 ms max.
Sensitivity setting Single-turn adjustment
Ambient illuminance Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Ambient temperature range (Operating) -25 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage) -40 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating) 35 to 85% (with no condensation)
Ambient humidity range (Strage) 35 to 95% (with no condensation)
Insulation resistance 20 MΩ min. (500 VDC megger)
Dielectric strength 1000 VAC 50/60 Hz 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protection IEC: IP67
DIN40050-9: IP69K
Connection method Pre-wired models (Cable length 2 m)
Indicator Operation indicator (orange), Stability indicator (green)
Weight Package: Approx. 60 g
Main Unit: Approx. 50 g
Accessories Instruction sheet, M18 nuts
Material Case: ABS
Lens: Methacrylate resin (PMMA)
Display: Methacrylate resin (PMMA)
Adjustment: POM
Nut: POM
