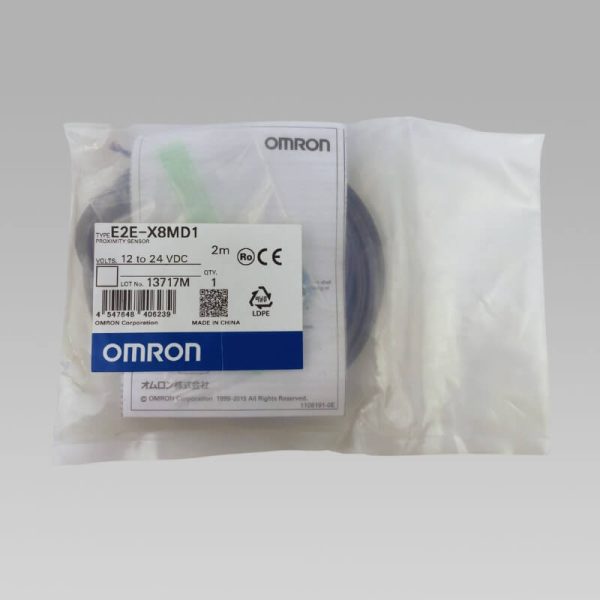

Omron E2E-X8MD1 Proximity Sensor

Brand: OMRON

Model Number: E2E-X8MD1

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

The E2E-X8MD1 is a unshielded long-barrel inductive proximity sensor with an 8 mm sensing distance, designed for enhanced durability and increased indicator visibility, equipped with cable protectors as a standard feature.


Detailed Specifications:

Specification Detail
Type Shielded, Unshielded
Model E2E-X8MD1
Sensing Distance 8 mm ±10%
Set Distance 0 to 6.4 mm
Differential Travel 10% max. of sensing distance
Sensing Object Ferrous metal (varies with non-ferrous metal)
Standard Sensing Object Iron, 30 × 30 × 1 mm
Response Frequency 800 Hz
Power Supply Voltage 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Leakage Current 0.8 mA max.
Control Output Switching capacity: 3 to 100 mA
Residual Voltage 3 V max. (Load current: 100 mA, Cable length: 2 m)
Protection Circuits Surge absorber, Load short-circuit protection
Ambient Temperature Operating/Storage: −25 to 70°C (no icing/condensation)
Ambient Humidity Operating/Storage: 35% to 95% (no condensation)
Temperature Influence ±10% max. of sensing distance at 23°C
Voltage Influence ±1% max. of sensing distance at rated voltage
Insulation Resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric Strength 1000 VAC 50/60 Hz for 1 minute
Vibration Resistance 10 to 55 Hz, 1.5-mm double amplitude (2 hours in X, Y, Z directions)
Shock Resistance 1000 m/s^2, 10 times each in X, Y, Z directions
Degree of Protection IEC IP67, oil resistance in-house standard
Connection Method Pre-wired Models (Standard cable length: 2 m)
Weight (Packed State) Approx. 150 g
Case Material Brass
Sensing Surface PBT
Clamping Nuts Nickel-plated brass
Toothed Washer Zinc-plated iron
Accessories Instruction sheet
