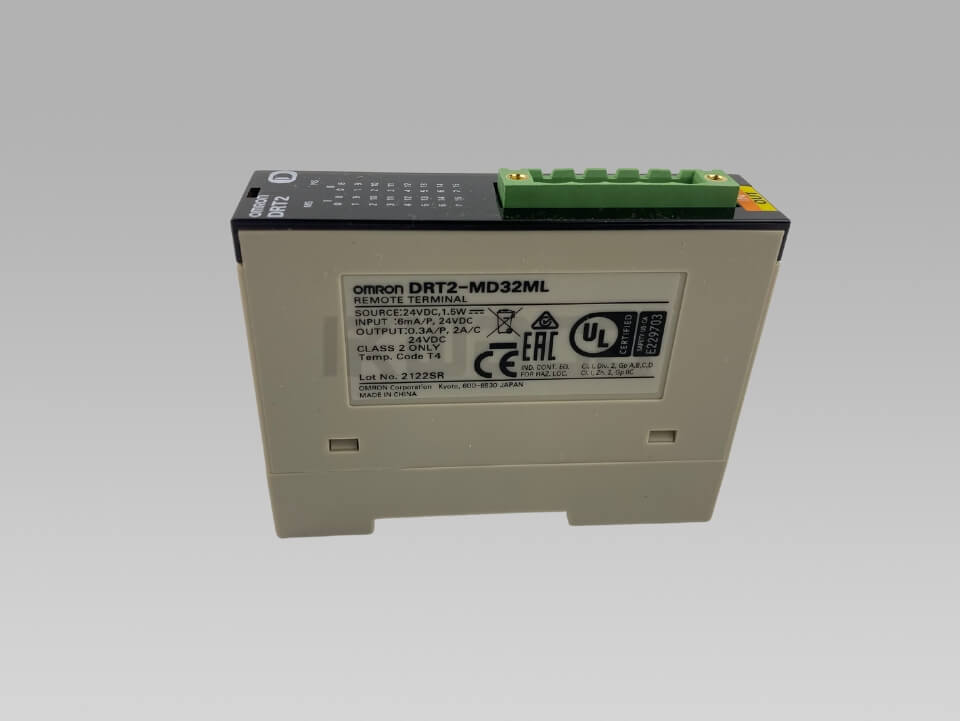

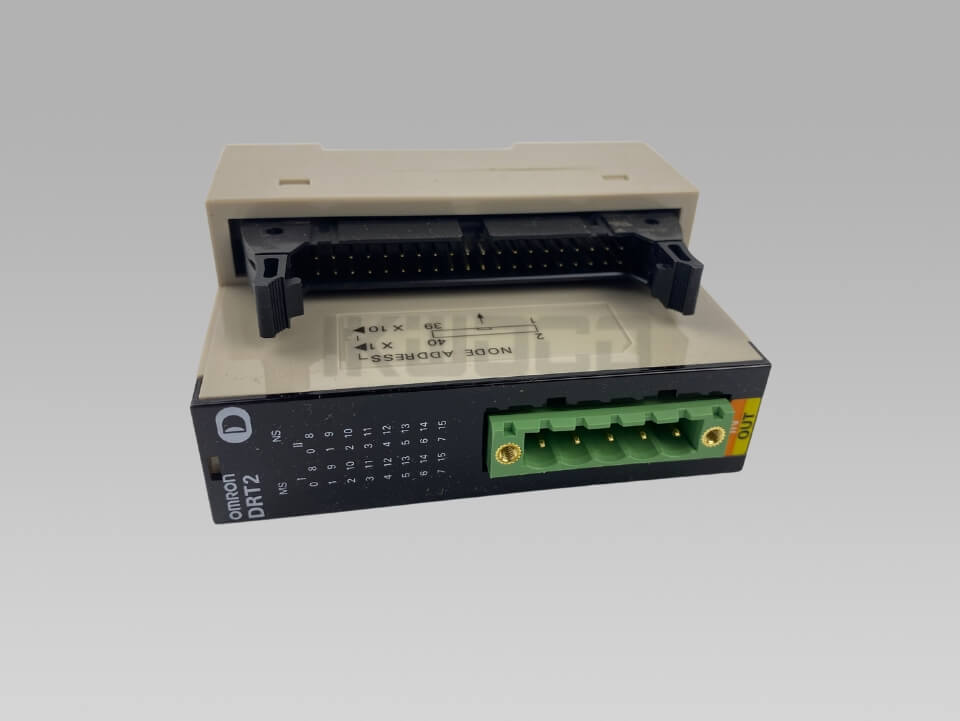

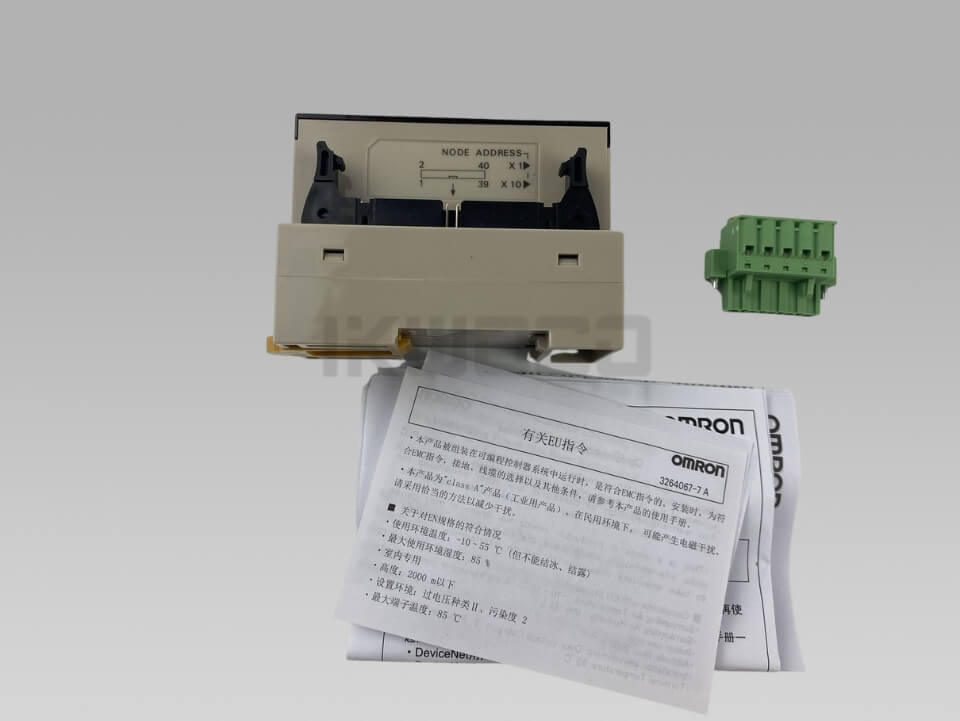

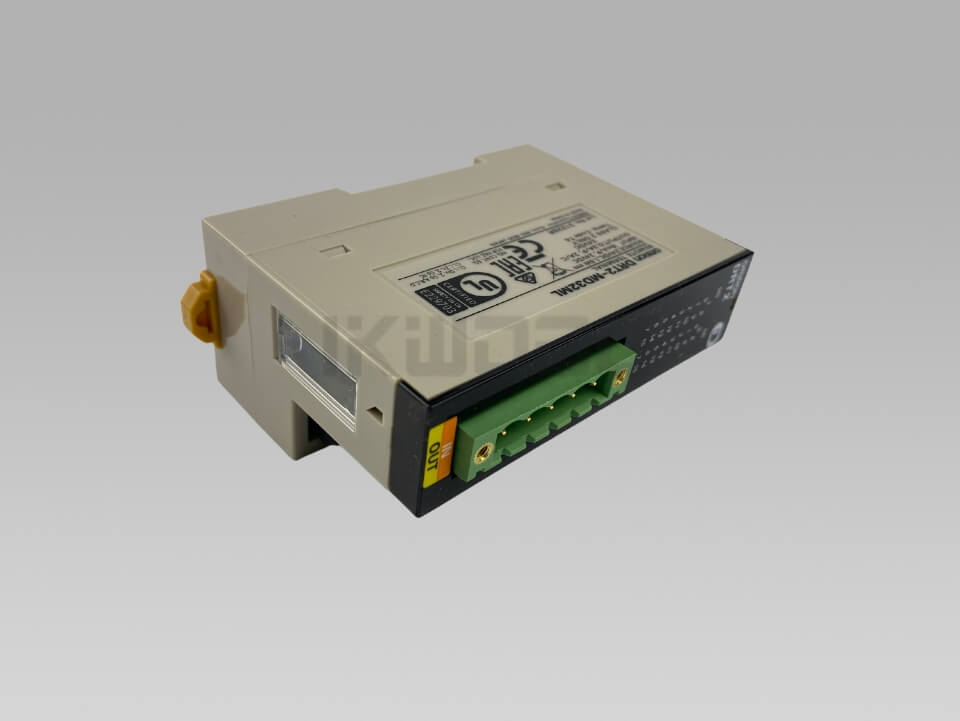

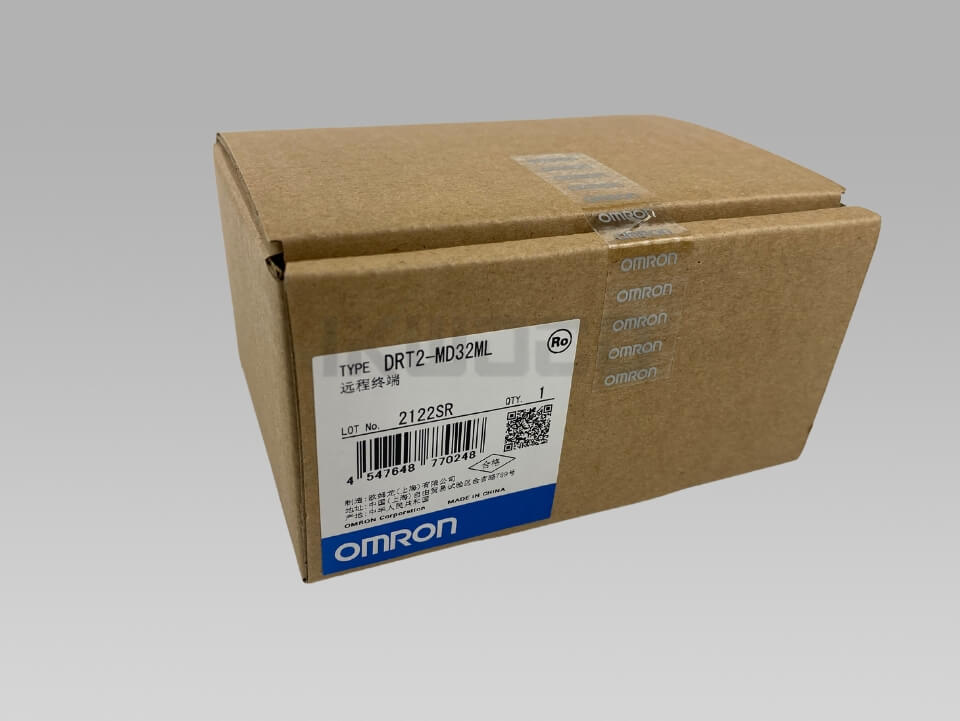

OMRON DRT2-MD32ML Terminal

Brand: OMRON

Model Number: DRT2-MD32ML

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

Features

  1. Used in combination with Interface Conversion Boards (e.g., D-Sub) to connect to a wide range of interfaces.
  2. 35 x 60 x 80 mm (W x D x H)



DRT2 Terminals Specifications

Specifications I/O connections Rated internal circuit
power supply voltage
Rated I/O power
supply voltage
Model
Inputs NPN (+ common) 32 points MIL connector Supplied from the
communications
connector
24 VDC DRT2-ID32ML
PNP (- common) DRT2-ID32ML-1
Outputs NPN (- common) DRT2-OD32ML
PNP (+ common) DRT2-OD32ML-1
I/O NPN (input: + common,
output: – common)
16 inputs/
16 outputs
DRT2-MD32ML
PNP (input: – common,
output: + common)
DRT2-MD32ML-1
Inputs NPN (+ common) 16 points MIL connector DRT2-ID16ML
PNP (- common) DRT2-ID16ML-1
Outputs NPN (- common) DRT2-OD16ML
PNP (+ common) DRT2-OD16ML-1
Inputs NPN (+ common) MIL connector
(Connector with
10-cm cable)
DRT2-ID16MLX
PNP (- common) DRT2-ID16MLX-1
Outputs NPN (- common) DRT2-OD16MLX
PNP (+ common) DRT2-OD16MLX-1
Mounting Bracket SRT2-ATT02
Communications power supply voltage 11 to 25 VDC (Supplied from the communications connector.)
Communications power supply current
consumption
DRT2-ID16ML(-1): 40 mA max. (24 VDC), 60 mA max. (11 VDC)
DRT2-ID16MLX(-1): 40 mA max. (24 VDC), 60 mA max. (11 VDC)
DRT2-OD16ML(-1): 45 mA max. (24 VDC), 75 mA max. (11 VDC)
DRT2-OD16MLX(-1): 45 mA max. (24 VDC), 75 mA max. (11 VDC)
DRT2-ID32ML(-1): 55 mA max. (24 VDC), 100 mA max. (11 VDC)
DRT2-OD32ML(-1): 70 mA max. (24 VDC), 120 mA max. (11 VDC)
DRT2-MD32ML(-1): 60 mA max. (24 VDC), 110 mA max. (11 VDC)
Noise immunity Conforms to IEC61000-4-4, 2 kV (power line)
Vibration resistance 10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s2
Shock resistance 150m/s2
Dielectric strength 500 VAC (between isolated circuits)
Insulation resistance 20 MΩ min.
Ambient operating temperature -10°C to 55°C
Ambient operating humidity 25% to 85% (with no condensation)
Ambient operating atmosphere No corrosive gases
Ambient storage temperature -25°C to 65°C
Mounting method DIN 35 mm-track mounting
Weight 120 g max. *
