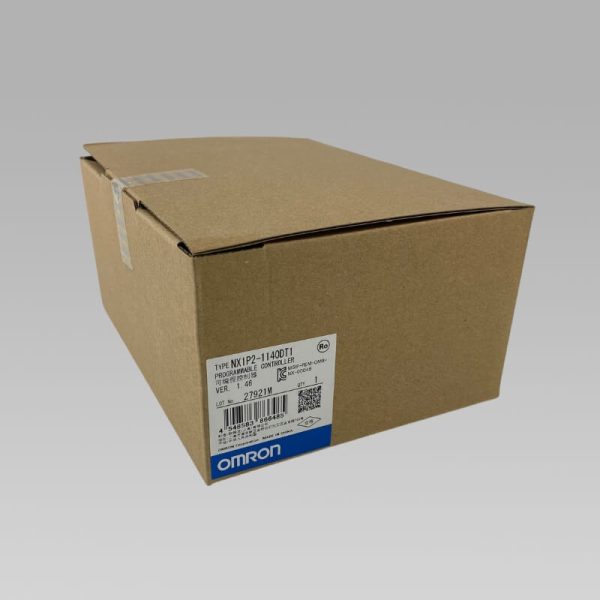

Omron CPU Unit NX1P2-1140DT1

Brand: OMRON

Model Number: NX1P2-1140DT1

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

The NX1P2-1140DT1 is a high-performance PLC from Omron’s NX1P2 series, designed for advanced machine control. It excels in motion control, offering EtherCAT and EtherNet/IP connectivity, and is ideal for demanding industrial automation tasks.


Detailed Specifications

Specification Category Details
Model NX1P2-1140DT1
Enclosure Mounted in a panel
Dimensions (W×H×D) 154 × 100 × 71 mm
Weight 660 g
Unit Power Supply Voltage 24 VDC (20.4 to 28.8 VDC)
Unit Power Consumption 6.85 W
Inrush Current 10 A max./0.1 ms max. and 2.5 A max./150 ms max.
Current Capacity of Power Supply Terminal 4 A max.
Operating Environment Temperature 0 to 55°C, Humidity 10% to 95% (no condensation)
Ambient Storage Temperature -25 to 70°C (excluding battery)
Noise Immunity 2 kV on power supply line (IEC 61000-4-4)
Vibration Resistance 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz at 9.8 m/s²
Shock Resistance 147 m/s² in X, Y, Z directions
Battery Life 5 years (Power ON time rate 0%)
Programming Capacity 1.5 MB
Memory Capacity for Variables (Retain attributes) 32 kB, 5,000 variables
Memory Capacity for Variables (No Retain attributes) 2 MB, 90,000 variables
Number of Controlled Axes (Motion Control) 12 axes
Built-in EtherNet/IP Port 1 port (10BASE-T, 100BASE-TX)
EtherCAT Port Specifications IEC 61158 Type12, 100 Mbps, Auto Duplex mode
Serial Communications (Option Board) Supported protocols include Host link, Modbus-RTU master, no-protocol
