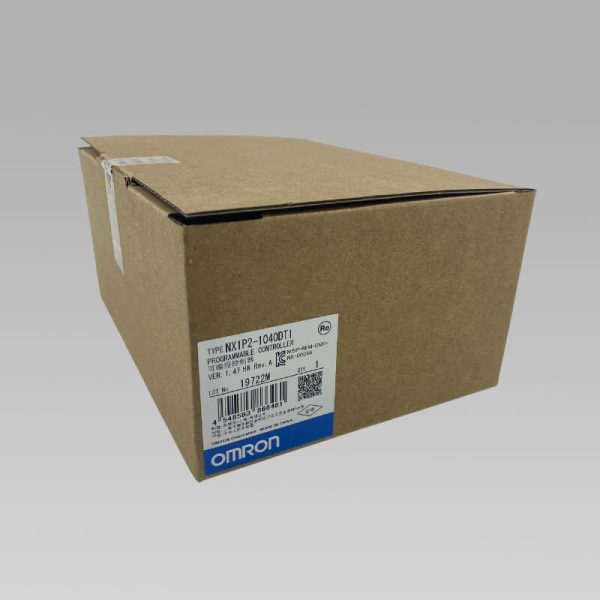

Omron CPU Unit NX1P2-1040DT1

Brand: OMRON

Model Number: NX1P2-1040DT1

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

The NX1P2-1040DT1 is a compact and versatile PLC from OMRON’s NX1P2 series, designed for advanced machine automation. It features robust motion control capabilities, EtherCAT and EtherNet/IP communication, and is suited for complex industrial applications.



Detailed Specifications

Specification Category Details
Enclosure Mounted in a panel
Grounding Method Ground to less than 100 Ω
Operating Environment Ambient temperature 0 to 55°C, humidity 10% to 95% (no condensation)
Storage Temperature -25 to 70°C (excluding battery)
Altitude Up to 2,000 m
Pollution Degree 2 or less (IEC 61010-2-201)
Noise Immunity 2 kV on power supply line (IEC 61000-4-4)
Overvoltage Category Category II (IEC 61010-2-201)
EMC Immunity Level Zone B
Vibration Resistance 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz at 9.8 m/s²
Shock Resistance 147 m/s² in X, Y, Z directions
Battery Life 5 years (CJ1W-BAT01 sold separately)
Programming Capacity 1.5 MB
Memory for Variables 32 kB (retain attributes), 2 MB (no retain attributes)
Number of Variables 5,000 (retain attributes), 90,000 (no retain attributes)
Data Types Supported 1,000 types
Motion Control Up to 12 axes controlled
EtherNet/IP Port 1 port (10BASE-T, 100BASE-TX)
EtherCAT Port IEC 61158 Type12, 100 Mbps, supports up to 16 slaves
Power Supply Built-in non-isolated DC input
Built-in I/O Input: 24 points, Output: 16 points
Load Short-Circuit Protection Provided for PNP models
Serial Communication Host link, Modbus-RTU master, no-protocol
Control Modes Position, velocity, torque
Axis Types Servo, virtual servo, encoder, virtual encoder
Positioning Modes Absolute, relative, interrupt feeding
Velocity Control Single-axis, cyclic synchronous
Torque Control Single-axis
Axis Group Control Absolute linear, relative linear, circular 2D interpolation
Communication Protocols TCP/IP, UDP/IP, CIP, EtherCAT, Modbus-RTU
Certifications EU Directives EN 61131-2, cULus Listed UL 61010-2-201, ANSI/ISA 12.12.01
