Brand: OMRON

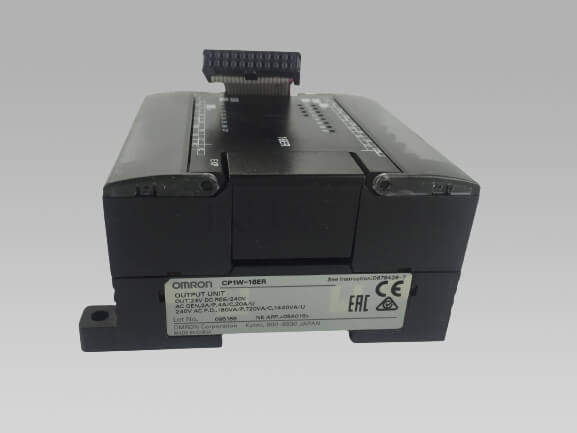

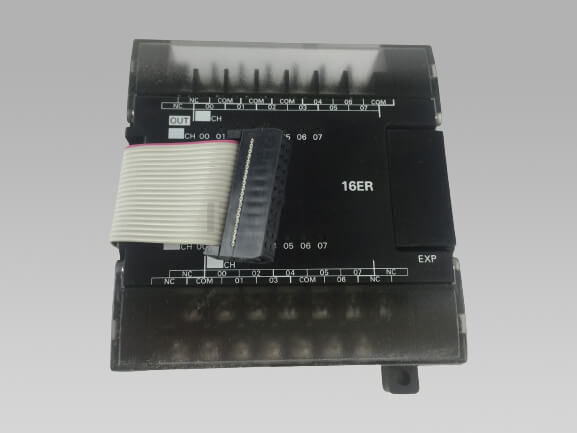

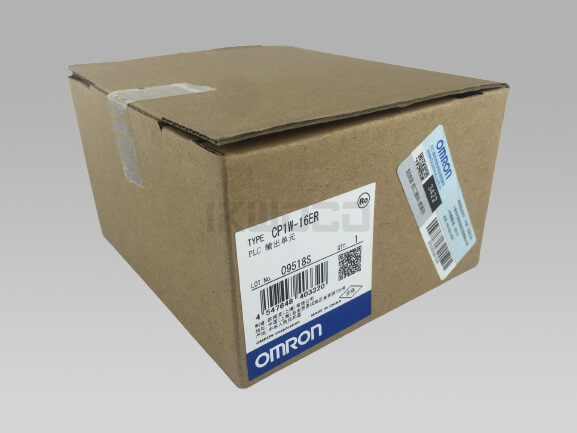

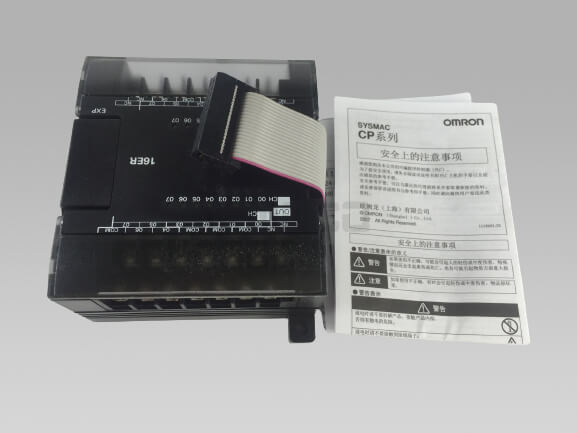

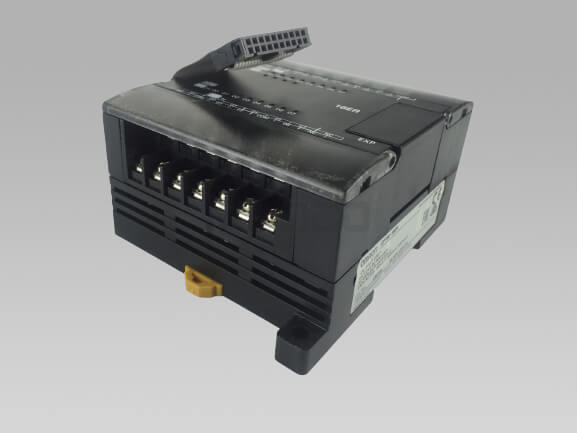

Model Number: CP1W-16ER
Status: new original in stock
Warranty: one year
MOQ: no
Guaranteed new, original Omron products ensuring optimal performance.
Swift, efficient delivery to keep your projects on track.
Worldwide support and services, tailored to your needs.
| Unit type |
Product name |
Specifications | Current consumption (A) |
Model | ||||
|---|---|---|---|---|---|---|---|---|
| Inputs | Out- puts |
Output type | 5 V | 24 V | ||||
| CP1W Expan- sion I/O Units |
Input Unit |
8 | — | 24 VDC Input | 0.018 | — | CP1W-8ED | |
Output Units |
— | 8 | Relay | 0.026 | 0.044 | CP1W-8ER | ||
| Transistor (sinking) | 0.075 | — | CP1W-8ET | |||||
| Transistor (sourcing) | 0.075 | — | CP1W-8ET1 | |||||
Output Units |
— | 16 | Relay | 0.042 | 0.090 | CP1W-16ER | ||
| Transistor (sinking) | 0.076 | — | CP1W-16ET | |||||
| Transistor (sourcing) | 0.076 | — | CP1W-16ET1 | |||||
Output Units |
— | 32 | Relay | 0.049 | 0.131 | CP1W-32ER | ||
| Transistor (sinking) | 0.113 | — | CP1W-32ET | |||||
| Transistor (sourcing) | 0.113 | — | CP1W-32ET1 | |||||
I/O Units |
12 | 8 | Relay | 0.103 | 0.044 | CP1W-20EDR1 | ||
| Transistor (sinking) | 0.130 | — | CP1W-20EDT | |||||
| Transistor (sourcing) | 0.130 | — | CP1W-20EDT1 | |||||
I/O Units |
24 | 16 | Relay | 0.080 | 0.090 | CP1W-40EDR | ||
| Transistor (sinking) | 0.160 | — | CP1W-40EDT | |||||
| Transistor (sourcing) | 0.160 | — | CP1W-40EDT1 | |||||
| CP1W Expan- sion Units |
Analog Input Unit  |
4CH | — | Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/6000 |
0.100 | 0.090 | CP1W-AD041 |
| Resolution: 1/12000 |
0.100 | 0.050 | CP1W-AD042 | |||||
| Analog Output Unit  |
— | 2CH | Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/6000 |
0.040 | 0.095 | CP1W-DA021 | |
| — | 4CH | Resolution: 1/6000 |
0.080 | 0.124 | CP1W-DA041 | |||
| Resolution: 1/12000 |
0.070 | 0.160 | CP1W-DA042 | |||||
| Analog I/O Unit  |
4CH | 4CH | Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. |
Resolution: 1/12000 |
0.120 | 0.170 | CP1W-MAD44 | |
| 4CH | 2CH | Resolution: 1/12000 |
0.120 | 0.120 | CP1W-MAD42 | |||
| 2CH | 1CH | Resolution: 1/6000 |
0.083 | 0.110 | CP1W-MAD11 | |||
| Temperature Sensor Unit  |
2CH | — | Sensor type: Thermocouple (J or K) | 0.040 | 0.059 | CP1W-TS001 | ||
| 4CH | — | Sensor type: Thermocouple (J or K) | 0.040 | 0.059 | CP1W-TS002 | |||
| 2CH | — | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) |
0.054 | 0.073 | CP1W-TS101 | |||
| 4CH | — | Sensor type: Platinum resistance thermometer (Pt100 or JPt100) |
0.054 | 0.073 | CP1W-TS102 | |||
| 4CH | — | Sensor type: Thermocouple (J or K) 2channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA |
Resolution: 1/12000 |
0.070 | 0.030 | CP1W-TS003 | ||
| 12CH | — | Sensor type: Thermocouple (J or K) | 0.080 | 0.050 | CP1W-TS004 | |||
| CompoBus/S I/O Link Unit  |
8 | 8 | CompoBus/S slave | 0.029 | — | CP1W-SRT21 *1 | ||
Secure your business success with our quality Omron products. Contact us today and experience the difference a decade of industry expertise makes.
Leveraging efficient supply chain processes and bulk purchasing power, Ikwoco delivers exceptional Omron products at prices that maximize your investment.
Omron Cables are renowned for their compact design, robust performance, high-speed data transmission, durable construction, easy integration, and adherence to international safety standards, making them a trusted choice for various industrial automation needs.
Our expert team is available to provide personalized guidance based on your specific connectivity needs to ensure you select the most suitable Omron Cable model.
Yes, Omron Cables are engineered for easy integration with a vast array of industrial devices and systems, enhancing the versatility of your automation setup.
Absolutely. We offer comprehensive technical support to ensure smooth setup and optimal performance of your Omron Cables.
You can place an order through our website or contact our sales team for guided assistance through the ordering process.
