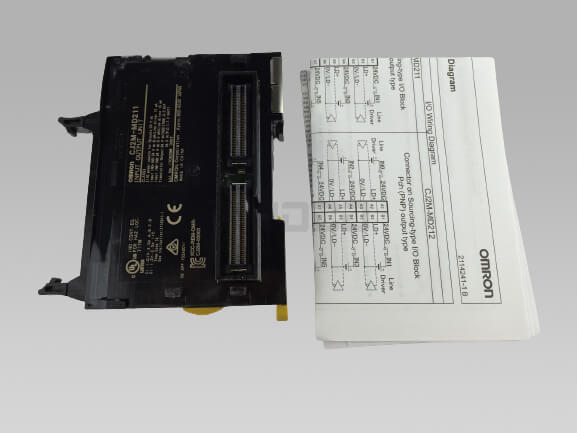

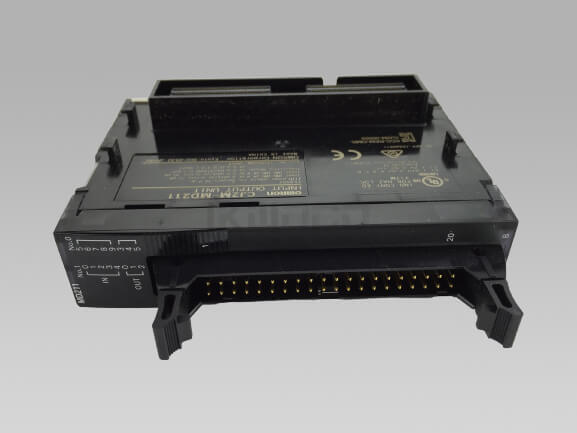

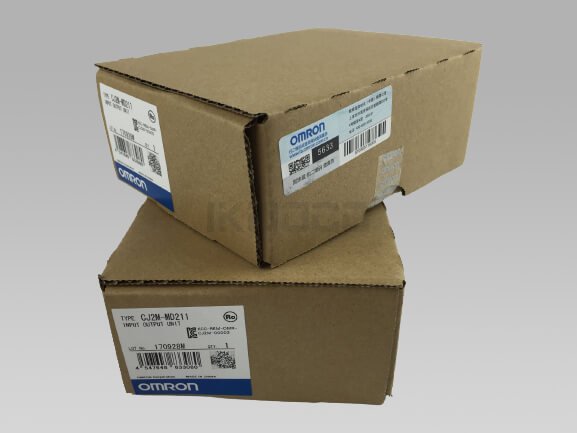

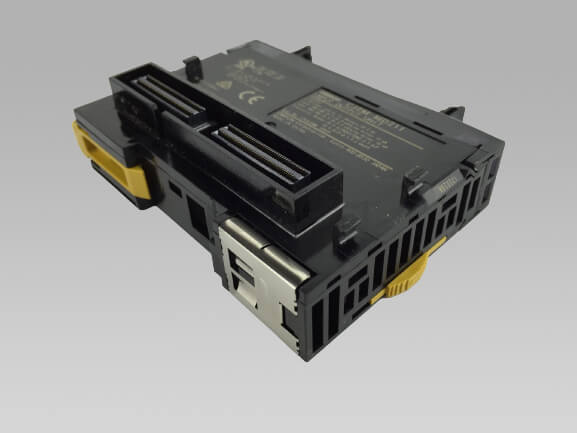

OMRON CJ2M-MD211 Pulse I/O Modules

Brand: OMRON

Model Number: CJ2M-MD211

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

Features

  1. Optional Pulse I/O Modules can be mounted to enable pulse I/O. Up to two Pulse I/O Modules can be mounted to the left side of a CJ2M CPU Unit.



CJ2M-MD Pulse I/O Modules Specifications

Product
name
Specifications Current
consumption (A)
Model
5 V 24 V
Pulse I/O
Modules
2712_lu_4_1
Sinking outputs, MIL connector
10 inputs (including four interrupt/quickresponse inputs and two
high-speed counter inputs)
6 outputs (including two pulse outputs and two PWM outputs)
0.08 CJ2M-MD211
Sourcing outputs, MIL connector CE
10 inputs (including four interrupt/quickresponse inputs and two
high-speed counter inputs)
6 outputs (including two pulse outputs and two PWM outputs)
0.08 CJ2M-MD212
Item Description
Pulse
I/O
Model of Pulse I/O
Modules
CJ2M-MD211 (Sinking-type)
CJ2M-MD212 (Sourcing-type )
External Interface 40-pin MIL connector
Pulse Inputs Can be used as normal inputs, interrupt inputs, quick-response inputs, or high-speed
counter inputs.
(Function of each input must be selected in the PLC Setup.)
Input method: Line-driver input or 24-VDC input (selected by wiring)
Normal Inputs 20 max. (10 per Pulse I/O Module)
Input constants: Set in the PLC Setup (0, 0.5, 1, 2, 4, 8, 16, or 32 ms). Default: 8 ms
Interrupt Inputs and
Quick-response
Inputs
8 max. (4 per Pulse I/O Module)
Input signal minimum ON pulse width: 30 μs
High-speed Counter
Inputs
4 max. (2 per Pulse I/O Module)
Input method: Differential-phase (×4) pulses, pulse + direction, up/down pulses, or
increment pulse
Maximum response frequency: 50 kHz for differential phases or 100 kHz for single
phase
Counting mode: Linear mode or circular (ring) mode
Count value: 32 bits
Counter reset: Phase Z + software reset or software reset
Control method: Target-value comparison or range comparison
Gate function: Supported
Pulse Outputs Can be used as normal outputs, pulse outputs, or PWM outputs. (Function of each
output must be selected in the PLC Setup.)
Output method: Sinking or sourcing transistor outputs (The method is determined by
Pulse I/O Module model.)
Normal Outputs 12 max. (6 per Pulse I/O Module)
Pulse Outputs 4 max. (2 per Pulse I/O Module)
Output method: CW/CCW or pulse + direction (The method is determined by the I/O
wiring and the instructions used in the ladder program.)
Output frequency: 1 pps to 100 kpps (in increments of 1 pps)
Output Mode: Continuous mode (for speed control) or independent mode (for position
control)
Output pulses: Relative coordinates: 0000 0000 to 7FFF FFFF hex (0 to 2,147,483,647
pulses)
Absolute coordinates: 8000 0000 to 7FFF FFFF hex (-2,147,483,648 to 2,147,483,647)
Acceleration/deceleration curves: Linear or S-curve
Origin search function: Supported
PWM Outputs 4 max. (2 per Pulse I/O Module)
Output frequency: 0.1 to 6,553.5 Hz (in 0.1-Hz increments) or 1 to 32,800 Hz (in 1-Hz
increments)
Duty ratio: 0.0% to 100.0% (in 0.1% increments)
