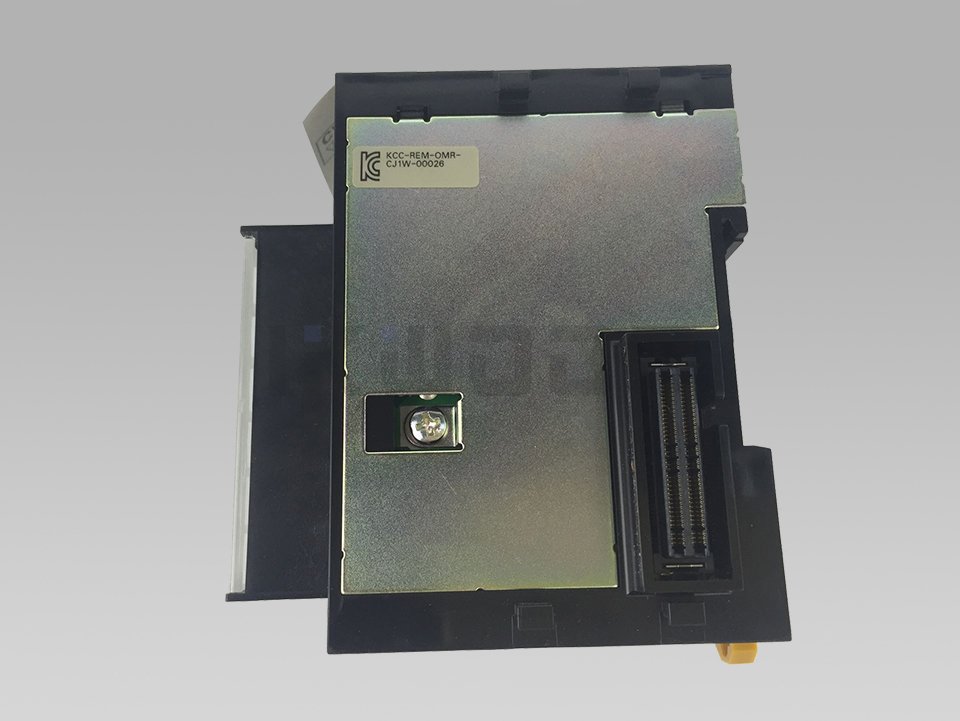

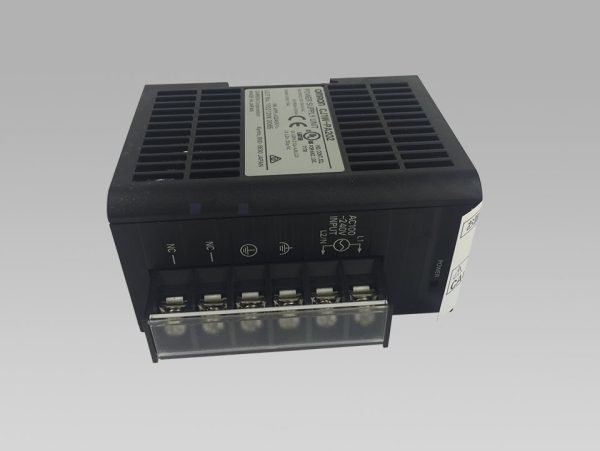

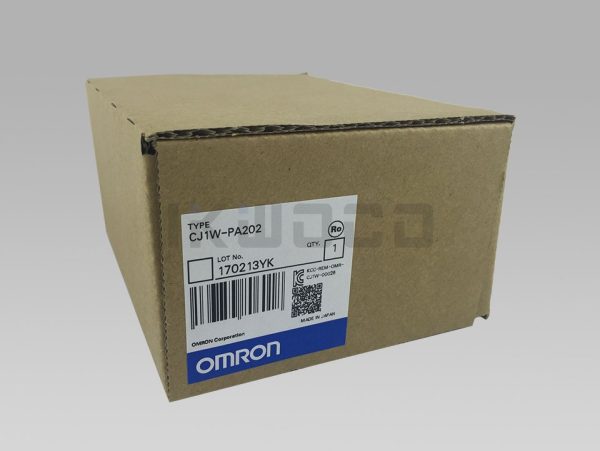

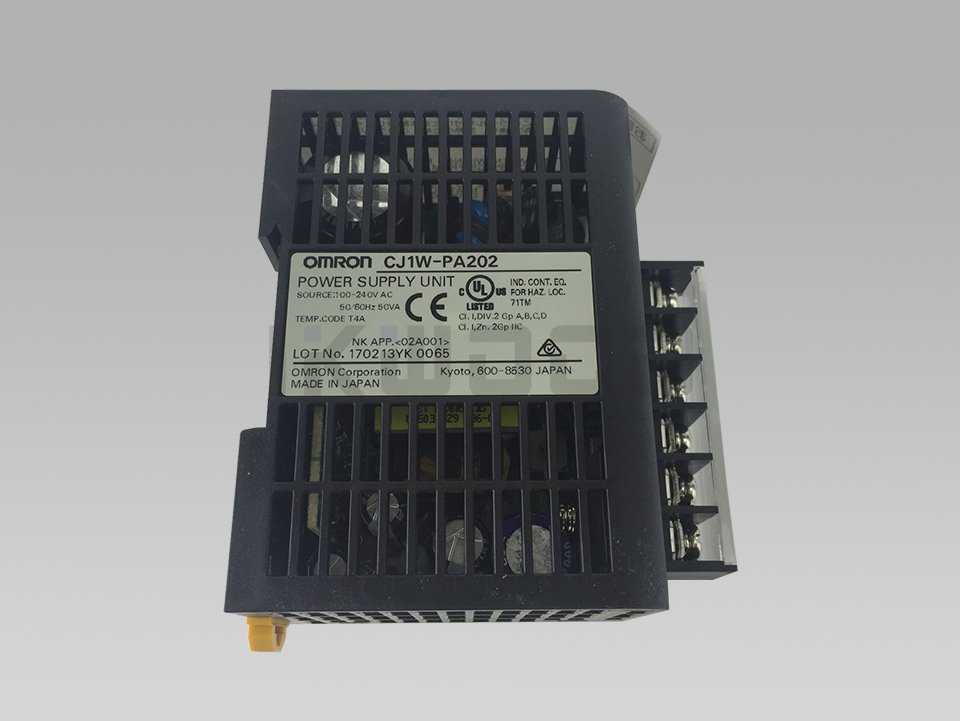

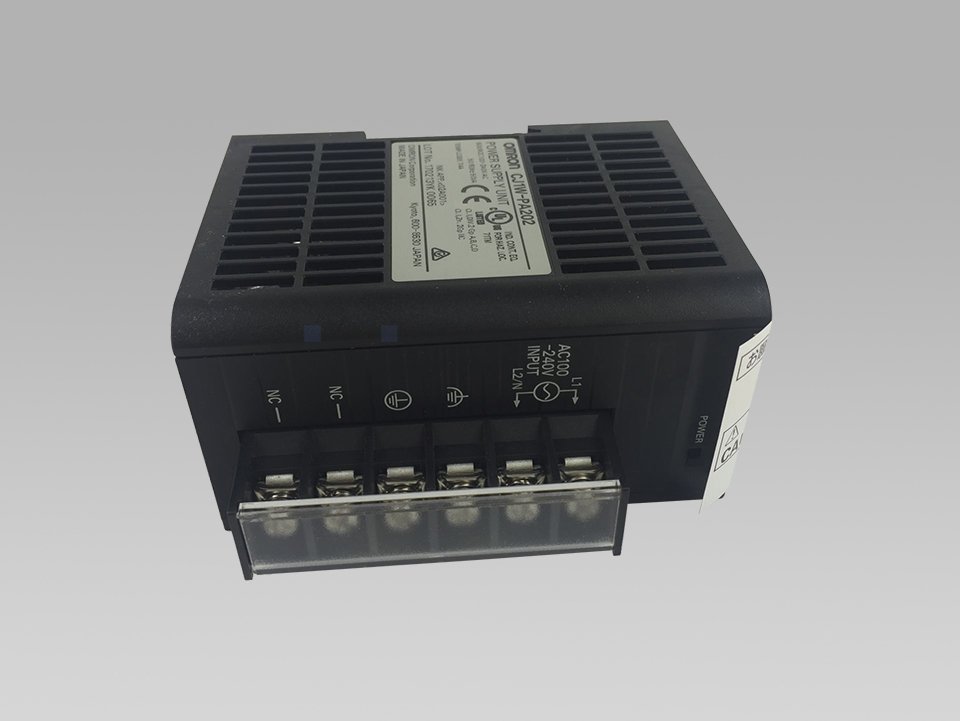

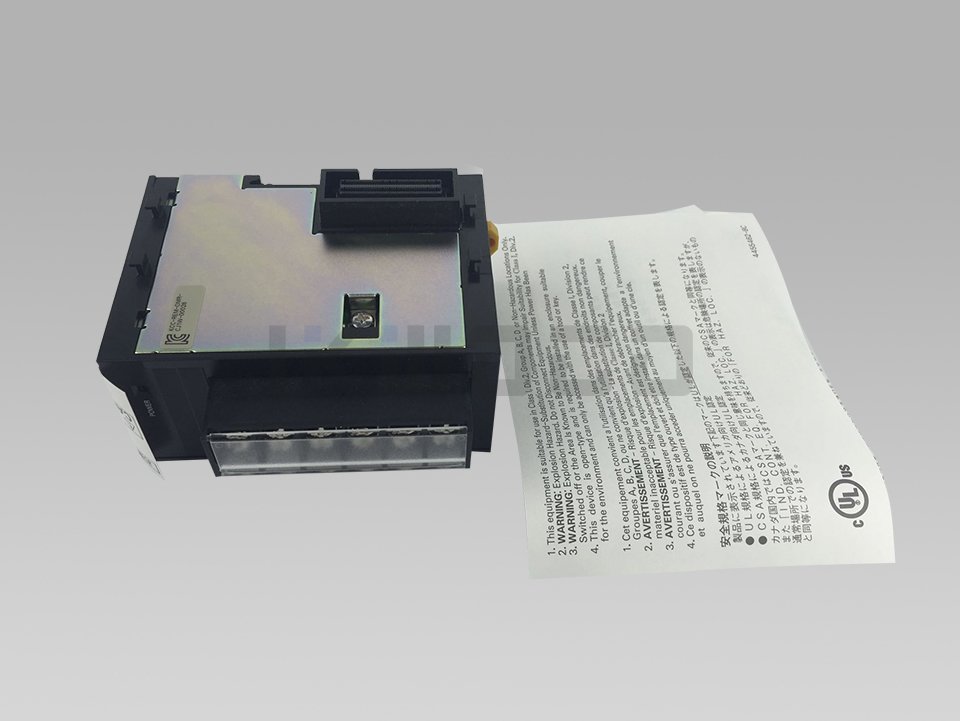

OMRON CJ1W-PA202 Power Supply Unit

Brand: OMRON

Model Number: CJ1W-PA202

Status: new original in stock

Warranty: one year

MOQ: no

New Original

Guaranteed new, original Omron products ensuring optimal performance.

Fast Delivery

Swift, efficient delivery to keep your projects on track.

Global Service

Worldwide support and services, tailored to your needs.

Features

  1. Power Supply Unit provides wide variations according to the system scale up to maximum 25 W.
  2. Power Supply Unit provides wide variations according to the power supply (100 to 240 V AC/ 24 V DC) status.



CJ1W PA Power Supply Units

Item Specifications
Model CJ1W-PA205R CJ1W-PA205C CJ1W-PA202
Supply voltage 100 to 240 V AC (wide-range), 50/60 Hz
Operating voltage and
frequency ranges
85 to 264 V AC, 47 to 63 Hz
Power consumption 100 VA max. 50 VA max.
Inrush current *1 At 100 to 120 V AC: 15 A/8 ms max. for cold start at room
temperature
At 200 to 240 V AC: 30 A/8 ms max. for cold start at room
temperature
At 100 to 120 V AC:
20 A/8 ms max. for cold start
at room temperature
At 200 to 240 V AC:
40 A/8 ms max. for cold start
at room temperature
Output capacity *7 5.0 A, 5 V DC (including supply to CPU Unit) 2.8 A, 5 V DC
(including supply to CPU Unit)
0.8 A, 24 V DC 0.4 A, 24 V DC
Total: 25 W max. Total: 14 W max.
Output terminal
(service supply)
Not provided.
RUN output *2 Contact configuration:
SPST-NO
Switch capacity:
250 V AC, 2 A (resistive load)
120 V AC, 0.5 A (inductive
load),
24 V DC, 2A (resistive load)
24 V DC, 2 A (inductive load)
Not provided.
Replacement
notification function
Not provided. With Alarm output (open-
collector output)
30 V DC max., 50 mA max.
Not provided.
Insulation resistance 20 MΩ min. (at 500 V DC)
between AC external and
GR terminals *3
20 MΩ min. (at 500 V DC)
between all external
terminals and GR terminal *3,
and between all alarm output
terminals.
20 MΩ 1 min. (at 250 V DC)
between all alarm output
terminals and GR terminal *3.
20 MΩ min. (at 500 V DC)
between AC external and
GR terminals *3
Dielectric strength *4 2,300 V AC 50/60 Hz for 1 min
between AC external and GR
terminals *3
Leakage current: 10 mA max.
2,300 VAC, 50/60 Hz for 1 min
between all external terminals
and GR terminal *3 and
between all alarm output
terminals with a leakage
current of 10 mA max.
1,000 V AC, 50/60 Hz for 1 min
between all alarm output
terminals and GR terminal *3
with a leakage current of 10
mA max.
2,300 V AC 50/60 Hz for 1 min
between AC external and GR
terminals *3
Leakage current: 10 mA max.
1,000 V AC, 50/60 Hz for 1 minute between DC external and GR terminals *3
Leakage current: 10 mA max.
Noise immunity 2 kV on power supply line (conforming to IEC61000-4-4)
Vibration resistance Conforms to IEC60068-2-6
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz
Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each =
100 min)
Shock resistance Conforms to IEC60068-2-27
147 m/s2, 3 times in X, Y, and Z directions (100 m/s2 for Relay Output Units)
Ambient operating
temperature
0 to 55 °C
Ambient operating
humidity
10% to 90% (with no
condensation)
10% to 90% (with no
condensation) *5
10% to 90% (with no
condensation)
Atmosphere Must be free from corrosive gases.
Ambient storage
temperature
– 20 to 70 °C (excluding
battery)
– 20 to 75 °C *5 – 20 to 75 °C (excluding
battery)
Grounding Less than 100 Ω
Enclosure Mounted in a panel.
Weight 350 g max. 400 g max. 200 g max.
CPU Rack
dimensions
90.7 to 466.7 × 90 × 65 mm (W × H × D) (not including cables)
Note:
W = a + b + 20 × n + 31 × m + 14.7
a: Power Supply Unit: PA205R and PA205C = 80; PA202 = 45; PD025 = 60; PD022=27
b: CPU Unit: CJ1-H or CJ1 = 62; CJ1M-CPU1[] = 31 *8; CJ1M-CPU2[] = 49 *8
The total width is given by the following: W = 156.7 + n × 20 + m × 31,
where n is the number of 32-point I/O Units or I/O Control Units and m is the number of other
Units.
Safety measures Conforms to cULus and EC Directives.





Power Supply Units

Product name Power
supply
voltage
Output capacity Options Model Stand-
ards
5-VDC
output
capacity
24-VDC
output
capacity
Total
power
con-
sumption
24-VDC
service
power
supply
RUN
output
Mainte-
nance
forecast
monitor
AC
Power
Supply
Unit
100 to
240
VAC
5 A 0.8 A 25 W No No Yes CJ1W-PA205C UC1,
N, L,
CE
Yes No CJ1W-PA205R
2.8 A 0.4 A 14 W No No CJ1W-PA202
DC
Power
Supply
Unit
24
VDC
5 A 0.8 A 25 W No No CJ1W-PD025
2 A 0.4 A 19.6 W No No CJ1W-PD022 UC1,
CE
