Brand: OMRON

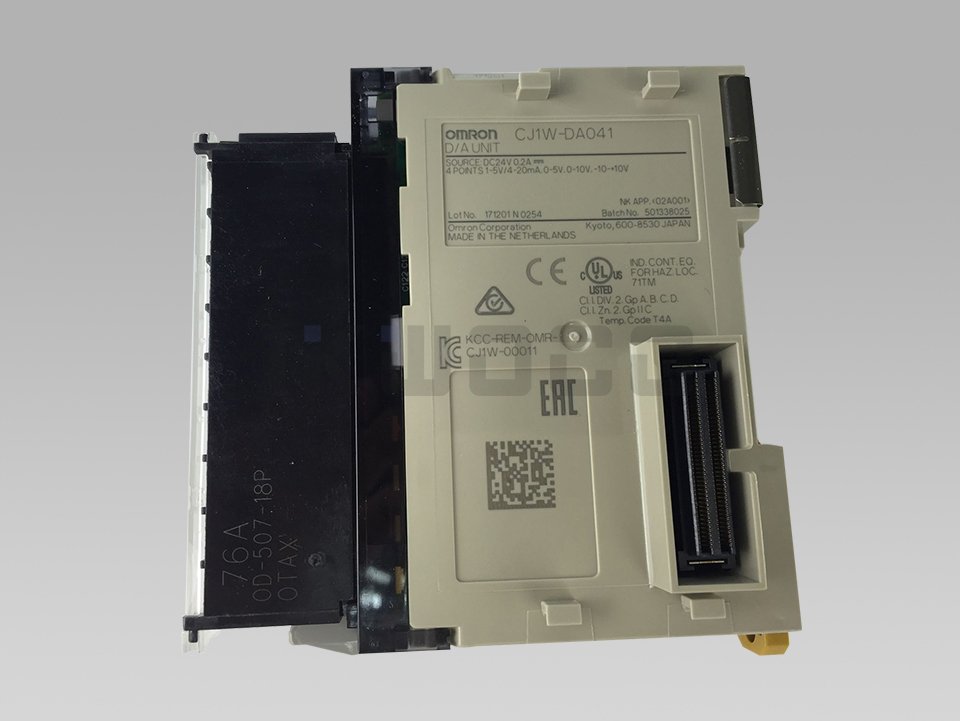

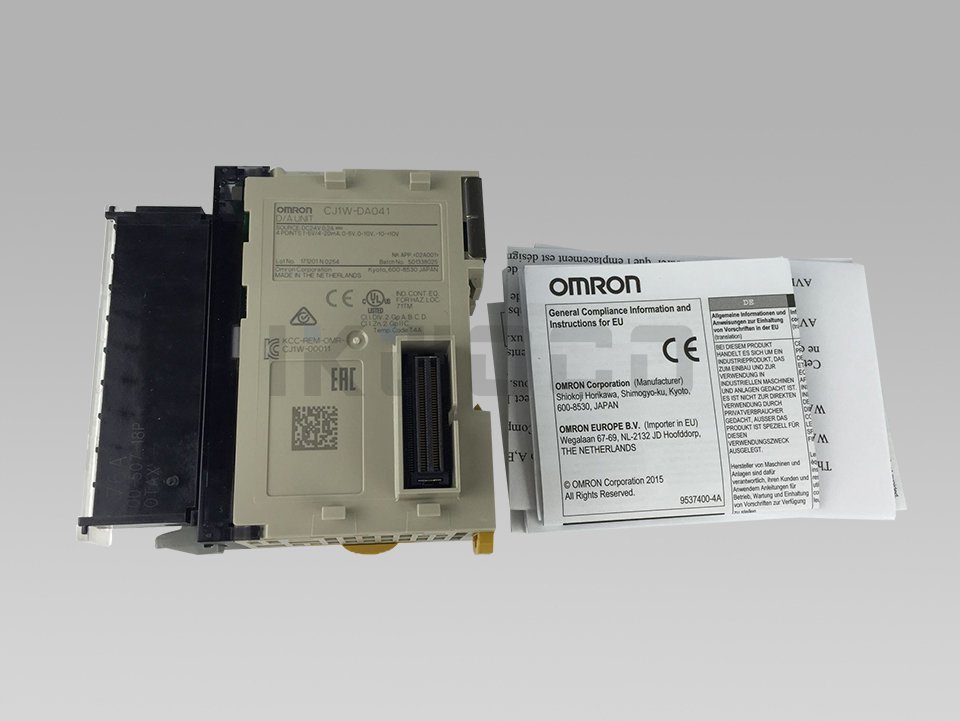

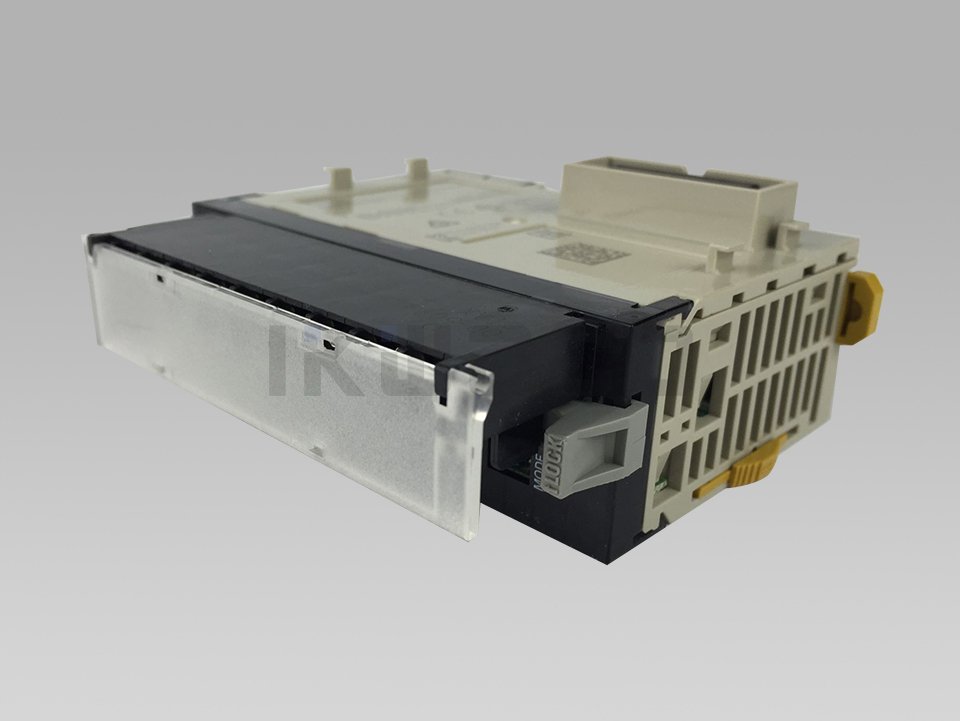

Model Number: CJ1W-DA041
Status: new original in stock
Warranty: one year
MOQ: no
Guaranteed new, original Omron products ensuring optimal performance.
Swift, efficient delivery to keep your projects on track.
Worldwide support and services, tailored to your needs.
| Item | CJ1W-DA021 | CJ1W-DA041 | CJ1W-DA08V | CJ1W-DA08C | CJ1W-DA042V | |||
|---|---|---|---|---|---|---|---|---|
| Unit type | CJ-series Special I/O Unit | |||||||
| Isolation *1 | Between I/O and Controller signals: Photocoupler (No isolation between I/O signals.) |
Between I/O and Controller signals: Digital isolator (No isolation between I/O signals.) |
||||||

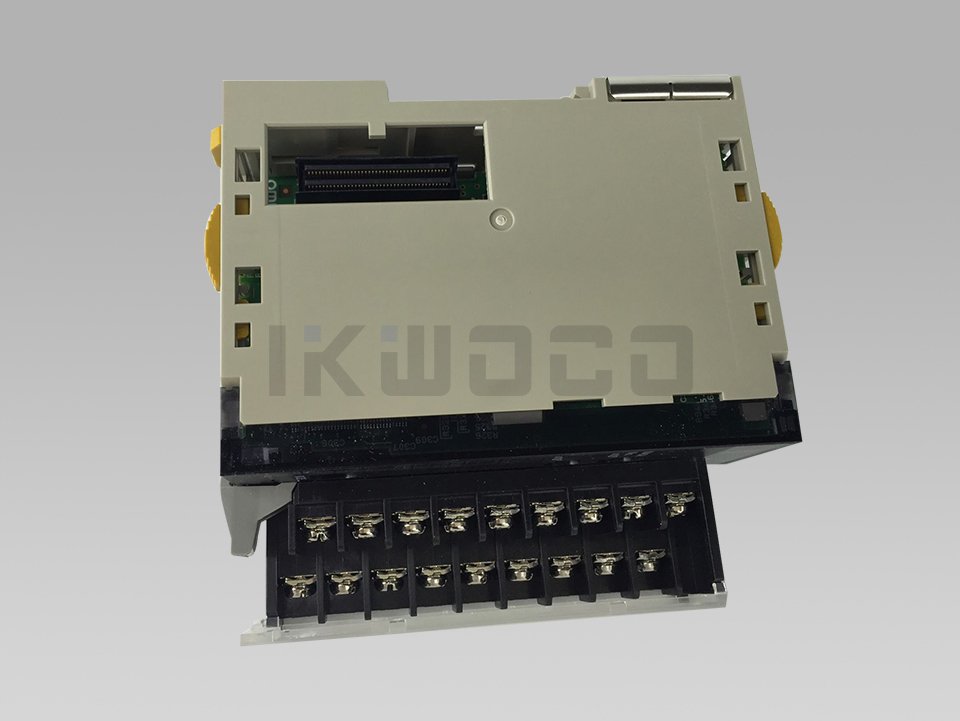

| External terminals | 18-point detachable terminal block (M3 screws) | |||||||
| Power consumption | 5 VDC, 120 mA max. | 5 VDC, 140 mA max. | 5 VDC, 400 mA max. | |||||
| External power supply *2 | 24 VDC +10% -15%, (inrush current: 20 A max., pulse width: 1 ms min.) |
— | ||||||
| 140 mA max. | 200 mA max. | 140 mA max. | 170 mA max. | — | ||||
| Dimensions (mm) | 31 × 90 × 65 mm (W × H × D) | |||||||
| Weight | 150 g max. | |||||||
| General specifications | Conforms to general specifications for CJ-series Series. | |||||||
| Output specifi- cations |
Number of analog outputs | 2 | 4 | 8 | 8 | 4 | ||
| Output signal range *3 | 1 to 5 V/4 to 20 mA 0 to 5 V 0 to 10 V – 10 to 10 V |
1 to 5 V 0 to 5 V 0 to 10 V – 10 to 10 V |
4 to 20 mA | 1 to 5 V 0 to 10 V – 10 to 10 V |
||||
| Output impedance | 0.5 Ω max. (for voltage output) | 0.5 Ω max. (for voltage output) |
— | 0.5 Ω max. (for voltage output) |
||||
| Max. output current (for 1 point) |
12 mA (for voltage output) | 2.4 mA (for voltage output) |
— | 2 mA (for voltage output) |
||||
| Maximum permissible load resistance |
600 Ω (current output) | — | 350 Ω | — | ||||
| Resolution | 40,000 | 4,000/8,000 *8 | 1 to 5 V | 10,000 | ||||
| 0 to 10 V | 20,000 | |||||||
| -10 to 10 V | 40,000 | |||||||
| Set data | 16-bit binary data | |||||||
| Accuracy *4 |
25 °C | Voltage output: ± 0.3% of F.S. Current output: ± 0.5% of F.S. |
± 0.3% of F.S. | ± 0.3% of F.S. | ± 0.3% of F.S. | |||
| 0 °C to 55 °C | Voltage output: ± 0.5% of F.S. Current output: ± 0.8% of F.S. |
± 0.5% of F.S. | ± 0.6% of F.S. | ± 0.5% of F.S. | ||||
| D/A conversion period *5 | 1.0 ms per point | 1.0 ms or 250 μs per point *8 | 20 μs/1 point, 25 μs/2 points, 30 μs/3 points, 35 μs/4 points |
|||||
| Output functions |
Output hold function | Outputs the specified output status (CLR, HOLD, or MAX) under any of the following circumstances. When the Conversion Enable Bit is OFF. *6 In adjustment mode, when a value other than the output number is output during adjustment. *7 When output setting value error occurs or Controller operation stops. When the Load is OFF. |
||||||
| Scaling | — | Supported only for a conversion period of 1 ms and resolution of 4,000. Setting values in any specified unit within a range of ± 32,000 as the upper and lower limits allows D/A conversion to be executed and analog signals to be output with these values as full scale. |
Setting values in any specified unit within a range of ±32,000 as the upper and lower limits allows D/A conversion to be executed and analog signals to be output with these values as full scale. |
|||||
| Offset/gain adjustment | Supported | — | ||||||
| Direct conversion | — | D/A conversion is performed and the output value is refreshed when the ANALOG OUTPUT DIRECT CONVERSION instruction (AODC) is executed. This instruction is supported by the CJ2H- CPU[][](-EIP) CPU Units with unit version 1.1 or later, and CJ2M-CPU[][]. CJ1, NJ501, and CP1H CPU Units and NSJ Controllers do not support direct conversion. |
||||||
| Product name |
I/O points |
Signal range |
Resolu- tion |
Conversion period |
Accuracy at ambient temperature of 25 °C |
External power supply |
Current consump- tion (A) |
Model | Stand- ards |
|
|---|---|---|---|---|---|---|---|---|---|---|
| 5 V | 24 V | |||||||||
| Analog Output Unit (High- speed type)  |
4 outputs |
1 to 5 V (1/10,000), 0 to 10 V (1/20,000), and -10 to 10 V (1/40,000) |
20 μs/1 point, 25 μs/2 points, 30 μs/3 points, 35 μs/4 points The Direct conversion is provided. *1 |
±0.3% of F.S. | — | 0.4 | — | CJ1W-DA042V | UC1, CE |
|
| Analog Output Units  |
8 outputs |
1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V |
1/4,000 (Settable to 1/8,000) *2 |
1 ms/point (Settable to 250 μs/point) *2 |
± 0.3% of F.S. | 24 VDC +10% -15%, 140 mA max. |
0.14 | 0.14 *3 |
CJ1W-DA08V | UC1, N, L, CE |
| 8 outputs |
4 to 20 mA | 24 VDC +10% -15%, 170 mA max. |
0.17 *3 |
CJ1W-DA08C | UC1, N, CE |
|||||
| 4 outputs |
1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA |
1/4,000 | 1 ms/point | Voltage: ± 0.3% of F.S. Current: ± 0.5% of F.S. |
24 VDC +10% -15%, 200 mA max. |
0.12 | 0.2 *3 |
CJ1W-DA041 | UC1, N, L, CE |
|
| 2 outputs |
24 VDC +10% -15%, 140 mA max. |
0.14 *3 |
CJ1W-DA021 | |||||||
